windows内核驱动 8-计时器与通知

2024/03/27
Tags: kernelwindows

在内核中使用定时器、通知和回调

…学到一半打靶场去了

定时器

CPU最短能统计时间为100纳秒 100ns

内核中使用LARGEINT来表示时间长度

1s = -10 *1000 * 1000

基于设备的IO定时器

在DriverEntry里面尝试一下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
VOID TimeWorker(PVOID CONTEXT) {
    DbgPrint("Irql: %d\n", KeGetCurrentIrql());
    DbgPrint("Process: %s\n", PsGetProcessImageFileName(PsGetCurrentProcess()));
}
NTSTATUS
DriverEntry(PDRIVER_OBJECT  DriverObject, PUNICODE_STRING RegistryPath)
{
//    ...
    IoInitializeTimer(pDevice, TimeWorker, NULL);
    IoStartTimer(pDevice);
}
Unload(){
    IoStopTimer(DriverObject->DeviceObject);
}

image-20240327161718432

主要API

  • IoInitializeTimer：创建定时

  • IoStartTimer：开启定时

  • IoStopTimer：关闭定时

技巧

  • 同时启用两个定时器可以关闭PCHUNTER
  • 做认证

结合DPC的定时器

1
2
3
4
5
6
7
8
9
10
11
12
//全局变量
KDPC kDPC = { 0 };
LARGE_INTEGER DpcTime = { 0 };

	KeInitializeTimer(&keTimer);
    KDPC kDPC = { 0 };
    KeInitializeDpc(&kDPC, &DpcRoutineFunc, NULL);
    LARGE_INTEGER DpcTime = { 0 };
    DpcTime.QuadPart = -10 * 1000 * 2000;
    KeSetTimer(&keTimer, DpcTime, &kDPC);

KeCancelTimer(&keTimer);

image-20240327164409369

  • 后续可以通过KeWait来判断超时之类的
  • 这个只会触发一次

放在工作队列线程池中运行

1
2
ExInitializeWorkItem(&work_item, WorkItemRoutine, NULL);
ExQueueWorkItem(&work_item, CriticalWorkQueue);

image-20240327170200351

  • 例程级别很低
  • WorkItemRoutine别陷入死循环，同步

通知

通知：发生某一件事变更，知道事情变更，但不能操作变更的结果。PsCreateNotify

回调：能拦截相关信息，更改流程和结果。

windows内核驱动 6-链表与进程讲了部分

模块加载回调：

使用PsGetProcessImageFileName需要添加声明

1
PCHAR PsGetProcessImageFileName(PEPROCESS EProcess);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
VOID ImageRoutine(
    PUNICODE_STRING FullImageName,
    HANDLE ProcessId,                // pid into which image is being mapped
    PIMAGE_INFO ImageInfo
) {
    //DbgPrint("Triigered callback\n");
    PEPROCESS temppe = NULL;
    NTSTATUS status = STATUS_SUCCESS;
    status = PsLookupProcessByProcessId(ProcessId, &temppe);
    if (NT_SUCCESS(status)) {
        ObDereferenceObject(temppe);
        PUCHAR imagename = PsGetProcessImageFileName(temppe);
        DbgPrint("[%s] load [%wZ] with baseaddr [%llx]\n", imagename, FullImageName, ImageInfo->ImageBase);
    }
    //DbgPrint("FullImageName: %wZ---PID: %d\n", FullImageName, ProcessId);

}

// PsSetCreateProcessNotifyRoutine()
PsSetLoadImageNotifyRoutine(ImageRoutine);
PsRemoveLoadImageNotifyRoutine(ImageRoutine);

image-20240327175140251

其他的也很类似

PsSetCreateThreadNotifyRoutine

对应的注销语句PsRemoveCreateThreadNotifyRoutine

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
#include <ntifs.h>

PCHAR PsGetProcessImageFileName(PEPROCESS EProcess);

VOID MyCreateThreadNotify(
    HANDLE ProcessId,
    HANDLE ThreadId,
    BOOLEAN Create) {

    if (Create) {
        PEPROCESS temppe = NULL;
        NTSTATUS status = STATUS_SUCCESS;
        status = PsLookupProcessByProcessId(ProcessId, &temppe);
        if (NT_SUCCESS(status)) {
            ObDereferenceObject(temppe);
            PCHAR imageName = PsGetProcessImageFileName(temppe);
            DbgPrint("[%s] create thread <%d>\n", imageName, ThreadId);
        }
    }
}

VOID
DriverUnload(PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);
    DbgPrint("Driver Stopping -> %wZ\n", &DriverObject->DriverName);
    PsRemoveCreateThreadNotifyRoutine(MyCreateThreadNotify);
}

NTSTATUS
DriverEntry(PDRIVER_OBJECT  DriverObject, PUNICODE_STRING RegistryPath)
{
    UNREFERENCED_PARAMETER(RegistryPath);

    DbgPrint("Driver Running -> %wZ\n", &DriverObject->DriverName);
    DriverObject->DriverUnload = DriverUnload;

    NTSTATUS status = STATUS_SUCCESS;
    status = PsSetCreateThreadNotifyRoutine(MyCreateThreadNotify);

    return STATUS_SUCCESS;
}

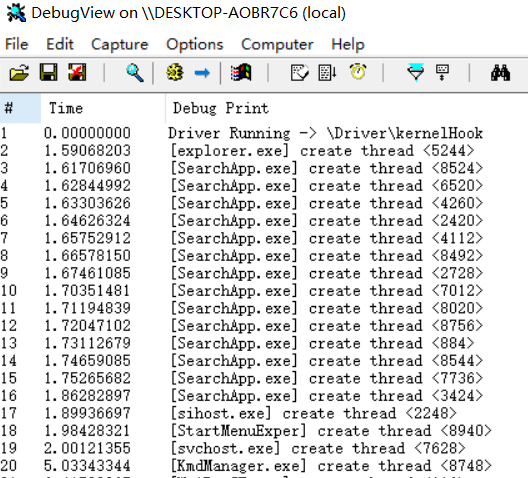

image-20260306193335115

利用掩码设置0b111，全部写0，移除回调，但是只能停止已经注册掉的开关

image-20260306194738678
