windows内核驱动 9-进程回调保护与注册表回调保护

2026/03/06
Tags: kernelwindows

又开始学内核编程

注册表回调保护

使用系统API CmRegisterCallback

1
2
3
4
5
NTSTATUS CmRegisterCallback(
  [in]           PEX_CALLBACK_FUNCTION Function,
  [in, optional] PVOID                 Context,
  [out]          PLARGE_INTEGER        Cookie
);

指向LARGE_INTEGER变量的指针，该变量接收标识回调例程的值。 注销回调例程时，请将此值作为 Cookie 参数传递给 CmUnRegisterCallback

1
[in] Function

指向要注册的 RegistryCallback 例程的指针。

1
[in, optional] Context

配置管理器将作为 CallbackContext 参数传递给 RegistryCallback 例程的驱动程序定义值

1
[out] Cookie

指向LARGE_INTEGER变量的指针，该变量接收标识回调例程的值。 注销回调例程时，请将此值作为 Cookie 参数传递给 CmUnRegisterCallback。

设置注册表回调参数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
#include <ntifs.h>

LARGE_INTEGER cookie = {0};

NTSTATUS RegCallback(PVOID callbackContext, PVOID optType, PVOID optData)
{
    REG_NOTIFY_CLASS tempclass = (REG_NOTIFY_CLASS)optType; //通知的类型
    switch (tempclass) {
    case RegNtPreOpenKey:
    case RegNtPreOpenKeyEx:
    case RegNtPreCreateKeyEx:
    case RegNtPreCreateKey: {
        DbgPrint("Create/Open Key\n");
        PREG_CREATE_KEY_INFORMATION pkey = (PREG_CREATE_KEY_INFORMATION)optData;
        __try {
            DbgPrint("key: <%wZ>\n", pkey->CompleteName);
        }
        __except(1){
            DbgPrint("bad memory\n");
        }

        break;
    }
    default:
        break;
    }
    return STATUS_SUCCESS;
}

VOID
DriverUnload(PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);
    DbgPrint("Driver Stopping -> %wZ\n", &DriverObject->DriverName);
    CmUnRegisterCallback(cookie);
}

NTSTATUS
DriverEntry(PDRIVER_OBJECT  DriverObject, PUNICODE_STRING RegistryPath)
{
    UNREFERENCED_PARAMETER(RegistryPath);

    DbgPrint("Driver Running -> %wZ\n", &DriverObject->DriverName);
    DriverObject->DriverUnload = DriverUnload;

    NTSTATUS status = STATUS_SUCCESS;
    status = CmRegisterCallback(RegCallback, (PVOID)0x123456, &cookie);


    return STATUS_SUCCESS;
}

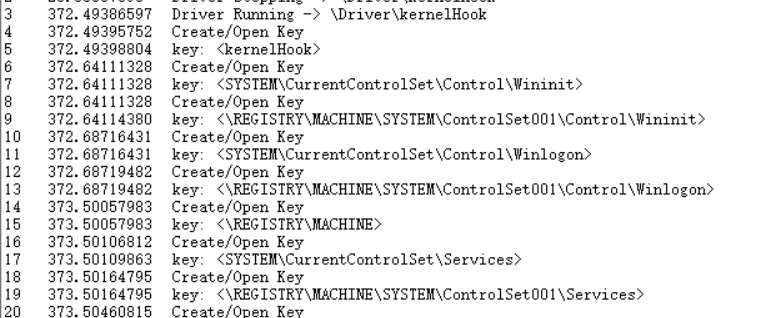

image-20260307123841380

进行拦截操作，就是稍微匹配一下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
NTSTATUS RegCallback(PVOID callbackContext, PVOID optType, PVOID optData)
{
    NTSTATUS status = STATUS_SUCCESS;
    REG_NOTIFY_CLASS tempclass = (REG_NOTIFY_CLASS)optType; //通知的类型

    UNICODE_STRING tempname = { 0 };
    RtlInitUnicodeString(&tempname, L"*DRIVERTEST");    //其实是一个正则表达式

    switch (tempclass) {
    case RegNtPreOpenKey:
    case RegNtPreOpenKeyEx:
    case RegNtPreCreateKeyEx:
    case RegNtPreCreateKey: {
        PREG_CREATE_KEY_INFORMATION pkey = (PREG_CREATE_KEY_INFORMATION)optData;
        __try {
            //DbgPrint("key: <%wZ>\n", pkey->CompleteName);
            if (FsRtlIsNameInExpression(&tempname, pkey->CompleteName, TRUE, NULL)) {
                DbgPrint("can't create such reg\n");
                status = STATUS_UNSUCCESSFUL;
            }
        }
        __except(1){
            DbgPrint("bad memory\n");
        }

        break;
    }
    default:
        break;
    }
    return status;
}

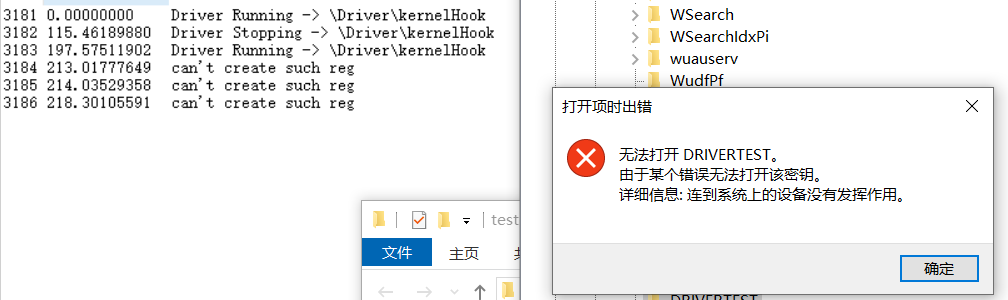

image-20260307125036585

对象/进程回调

也就是注册一个 对 进程对象 的回调函数

1
2
3
4
5
6
7
typedef struct _OB_CALLBACK_REGISTRATION {
  USHORT                    Version;
  USHORT                    OperationRegistrationCount;
  UNICODE_STRING            Altitude;
  PVOID                     RegistrationContext;
  OB_OPERATION_REGISTRATION *OperationRegistration;
} OB_CALLBACK_REGISTRATION, *POB_CALLBACK_REGISTRATION;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
#include <ntifs.h>
#include <windef.h>

PCHAR PsGetProcessImageFileName(PEPROCESS EProcess);

typedef struct _LDR_DATA_TABLE_ENTRY
{
    LIST_ENTRY InLoadOrderLinks;
    LIST_ENTRY InMemoryOrderModuleList;
    LIST_ENTRY InInitializationOrderModuleList;
    PVOID DllBase;
    PVOID EntryPoint;
    ULONG SizeOfImage;
    UNICODE_STRING FullDllName;
    UNICODE_STRING BaseDllName;
    ULONG Flags;
    USHORT LoadCount;
    USHORT TlsIndex;
    union
    {
        LIST_ENTRY HashLinks;
        struct
        {
            PVOID SectionPointer;
            ULONG CheckSum;
        };
    };
    union
    {
        ULONG TimeDateStamp;
        PVOID LoadedImports;
    };
    PVOID EntryPointActivationContext;
    PVOID PatchInformation;
} LDR_DATA_TABLE_ENTRY, * PLDR_DATA_TABLE_ENTRY;

PVOID Handle = NULL;

static OB_PREOP_CALLBACK_STATUS ProtectProcess(
    _In_ PVOID RegistrationContext,
    _Inout_ POB_PRE_OPERATION_INFORMATION OperationInformation
) {
    PUCHAR imageFileName = PsGetProcessImageFileName(OperationInformation->Object);
    DbgPrint("open/duplicate process: %s\n", imageFileName);
    return OB_PREOP_SUCCESS;
}

VOID
DriverUnload(PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);
    DbgPrint("Driver Stopping -> %wZ\n", &DriverObject->DriverName);
    ObUnRegisterCallbacks(Handle);
}

NTSTATUS
DriverEntry(PDRIVER_OBJECT  DriverObject, PUNICODE_STRING RegistryPath)
{
    UNREFERENCED_PARAMETER(RegistryPath);

    DbgPrint("Driver Running -> %wZ\n", &DriverObject->DriverName);
    DriverObject->DriverUnload = DriverUnload;

    NTSTATUS status = STATUS_SUCCESS;

    PLDR_DATA_TABLE_ENTRY ldr = (PLDR_DATA_TABLE_ENTRY)DriverObject->DriverSection;
    ldr->Flags |= 0x20;
    OB_CALLBACK_REGISTRATION ob = { 0 };
    OB_OPERATION_REGISTRATION obReg = { 0 };
    UNICODE_STRING altitude = { 0 };
    RtlInitUnicodeString(&altitude, L"32199");
    ob.Version = ObGetFilterVersion();
    ob.OperationRegistrationCount = 1;
    ob.OperationRegistration = &obReg;
    ob.Altitude = altitude;
    ob.RegistrationContext = NULL;

    obReg.ObjectType = PsProcessType;   //注册进程的回调
    obReg.Operations = OB_OPERATION_HANDLE_CREATE | OB_OPERATION_HANDLE_DUPLICATE;
    obReg.PreOperation = ProtectProcess;
    obReg.PostOperation = NULL;

    status = ObRegisterCallbacks(&ob, &Handle);
    return status;
}

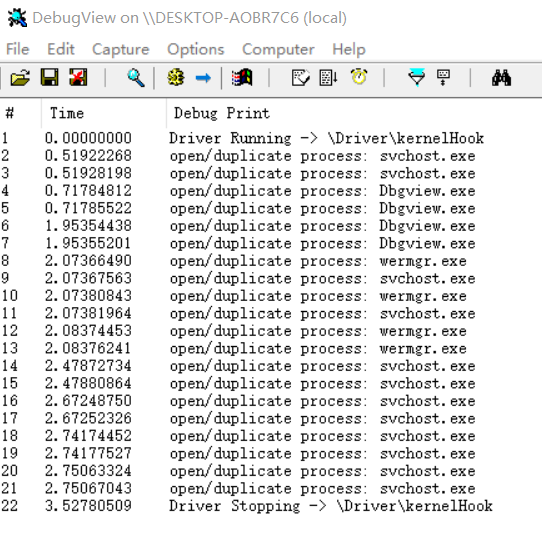

image-20260307132606680

设置访问等级可以让进程不会被关闭

1
2
3
4
5
6
7
8
9
10
11
12
static OB_PREOP_CALLBACK_STATUS ProtectProcess(
    _In_ PVOID RegistrationContext,
    _Inout_ POB_PRE_OPERATION_INFORMATION OperationInformation
) {
    PUCHAR imageFileName = PsGetProcessImageFileName(OperationInformation->Object);
    //DbgPrint("open/duplicate process: %s\n", imageFileName);
    if (strstr(imageFileName, "Calc")) {    //如果打开/复制计算器,权限清0
        OperationInformation->Parameters->CreateHandleInformation.DesiredAccess = 0;
        OperationInformation->Parameters->DuplicateHandleInformation.DesiredAccess = 0;
    }
    return OB_PREOP_SUCCESS;
}

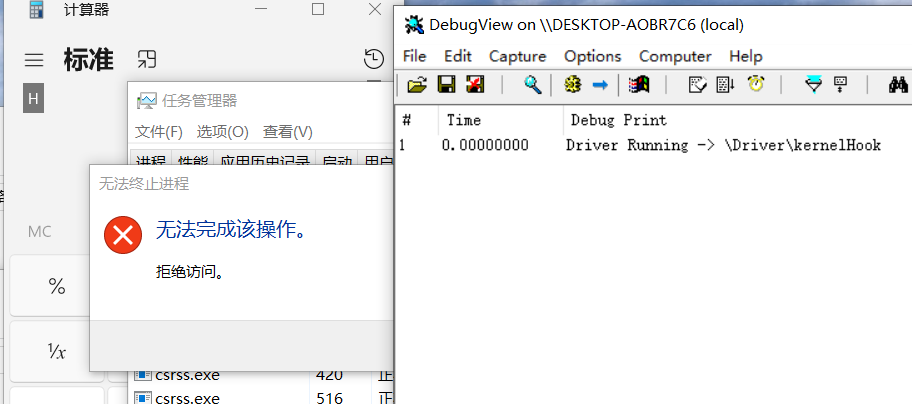

image-20260307133110436

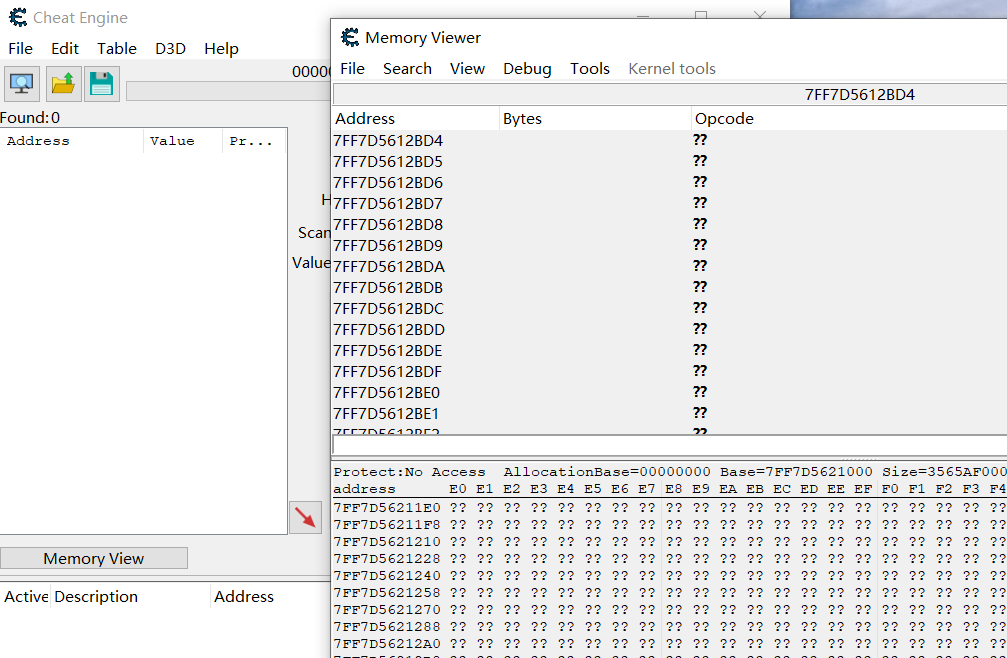

同时也可以保护进程内存不被访问到

image-20260307133546003
