windows rookit防护-Kernel Hook 1.5

前一篇写了 inline hook和ssdt两种方式，但是相关的的某些东西没讲清楚。

TL,DR：介绍驱动加载的方法，PatchGuard简介，如何在测试中关闭/开启KVAS保护（Shadow SSDT中的KiSystemCall64Shadow相关），然后测试ssdt/shadow ssdt hook方法，最后内容是Shadow SSDT枚举。

Ring3 加载一个sys文件

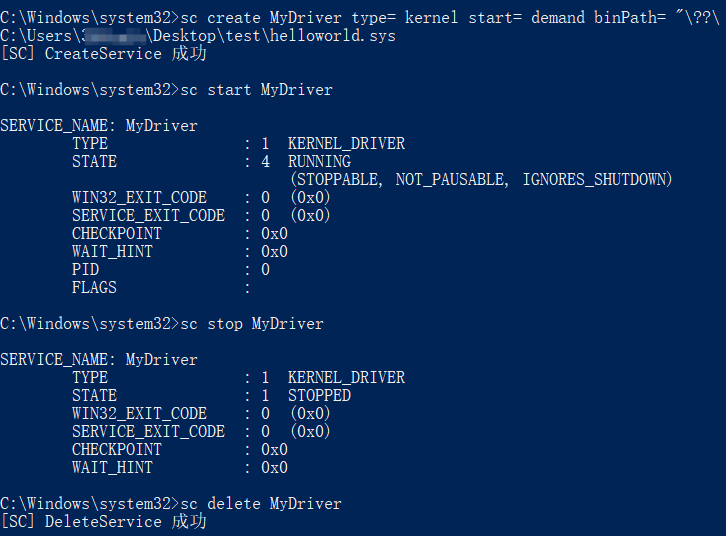

首先有一个hello world的驱动，尝试使用命令行加载他（使用管理员权限）

sc create <使用的名称> type= kernel start= demand binPath="/??/<驱动文件路径，这里应该用的是描述符格式>"

sc start <使用的名称>
sc stop <使用的名称>
sc delete <使用的名称>

sc是Service Control的简称，本质是操作 Windows 的 SCM（服务控制管理器），这里的加载驱动本质上是创建一个 kernel类型的服务，然后启动。

服务控制管理器（SCM）在系统启动时启动。它是远程过程调用（RPC）服务器，以便服务配置和服务控制程序可以作远程计算机上的服务。

服务函数为 SCM 执行的以下任务提供接口：

维护已安装服务的数据库。

在系统启动时或按需启动服务和驱动程序服务。

枚举已安装的服务和驱动程序服务。

维护运行服务和驱动程序服务的状态信息。

将控制请求传输到正在运行的服务。

锁定和解锁服务数据库。

https://learn.microsoft.com/zh-cn/windows/win32/services/service-control-manager

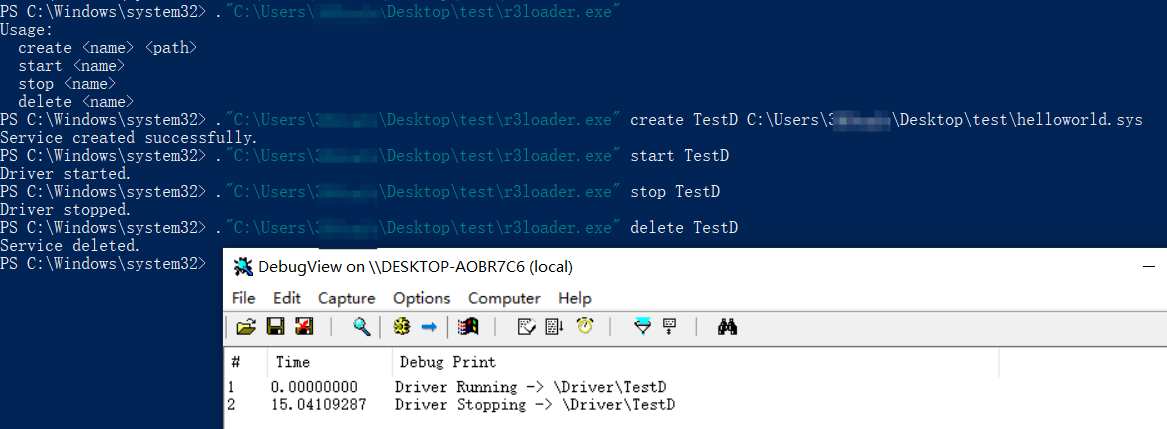

那么sc是如何完成这一过程的呢？对应的代码在附录的《简单的ring3驱动加载器》

Ring0 加载一个sys文件

正常做法就是先注册表HKLM\SYSTEM\CurrentControlSet\Services\<service name>

然后调用ZwLoadDriver API

UNICODE_STRING regPath;
RtlInitUnicodeString(
    &regPath,
    L"\\Registry\\Machine\\System\\CurrentControlSet\\Services\\MyDriver2"
);

NTSTATUS status = ZwLoadDriver(&regPath);

**那么使用手动加载呢？**这里需要PE 文件格式的基础，可以看：PE文件格式解析

这里修改下，就可以的得到内核手动映射，不过这个暂时过不了__security_cookie的检测，所以得自己设置AddressofEntry的值或者改写cookie，代码在附录的《手动映射SYS》，注意修改

main中的文件路径
ExecuteMappedDriver中的entry偏移
FixImportTable中while循环中的IAT个数大小

PatchGuard

具体的分析可能会后续重新写一篇文章，如果实在想提前了解可以参考

https://blog.tetrane.com/downloads/Tetrane_PatchGuard_Analysis_RS4_v1.01.pdf

基本上所有的入门介绍都或多或少参考了这个PDF

本质上，它是内核的重要组成部分，与内核的其他部分一样在 Ring 0 中运行。它并非某种对 Ring 0 代码拥有更大权限的 Ring -1 机制（至少本文讲的范围内没有）。它的主要目的是检查关键的内核结构和代码，确保它们没有被篡改。如果检测到任何未经授权的修改，它会触发蓝屏死机，并附带错误代码CRITICAL_STRUCTURE_CORRUPTION和错误检查代码0x109，从而避免任何错误或混淆。它明确地表明 Ring 0 中某些不应该被修改的内容已被修改。

并且由于PG的异步机制，因此无法确定它何时会检查关键结构和代码。

主要检测的内容有

IDT（中断描述符表）和 GDT（全局描述符表）
- GDT：是IA-32和x86-64架构特有的二进制数据结构。它包含向CPU提供有关内存段的条目。
- IDT：是一种专用于 IA-32 和 x86-64 架构的二进制数据结构。它是保护模式和长模式下与实模式中断向量表 (IVT) 对应的机制，用于告知 CPU 中断服务例程 (ISR) 的位置（每个中断向量对应一个 ISR）。
MSR（模型特定寄存器）：CPU 寄存器，用于控制高级行为，例如功能、限制和执行流程管理。
SSDT（系统服务描述符表）：一个包含指向实现系统调用（例如NtCreateFile，、NtOpenProcess等）的内核函数的指针的表。
内核栈
内核结构
全局变量
KPP引擎

关于KVAS保护

KVAS全称是Kernel Virtual Address Shadow，它的出现与MeltDown（CVE-2017-5754）和TotalMeltDown（CVE-2018-1038）有关。

我的描述不一定准确，大致上来说这两个漏洞利用了CPU的乱序执行技术，即CPU在执行时不一定会按照流程执行。当我们访问一个不能被用户模式访问的内存页时，CPU会执行该语句然后将其缓存到内存中，等到发现不能访问后返回错误，但是该数据依旧存在于缓存当中。利用这种思路就可以完全读取内核中的数据，实现权限提升等。

微软为了缓解该漏洞，从用户页表中隔离出内核页表，让用户态访问到的内核页表也是经过映射的，并且会将用户页表自动标记为NX，让我们的shellcode无法执行

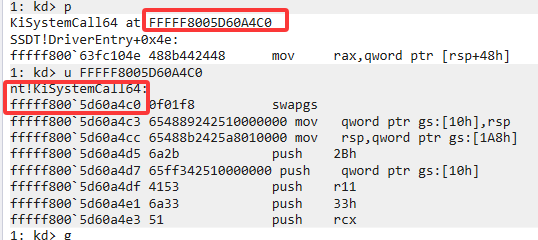

笔者在这里遇到了很有趣的一点就是在最新的AMD Ryzen9 8945HX 上

DbgPrint("Driver Loaded\n");
DriverObject->DriverUnload = DriverUnload;

DWORD64 dmsr = __readmsr(0xC0000082);
DbgPrint("KiSystemCall64 at %p\n", dmsr);

无法让结果是**KiSystemCall64Shadow**（Shadow SSDT依旧是存在的！），反倒是在Intel i5 9300H的CPU上成功实现了。

所以这里只讲在受影响的Intel CPU上如何实现的

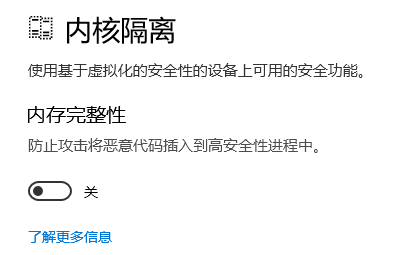

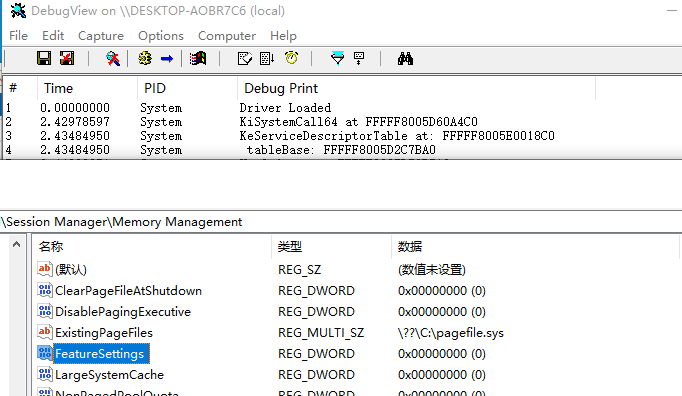

Windows内核缓解机制使用了Kva Shadow内存，尝试将其关闭

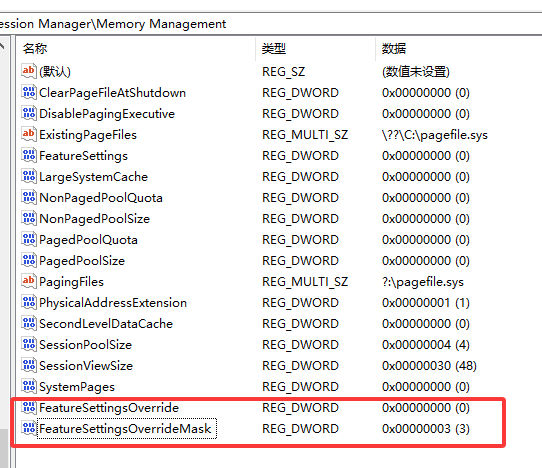

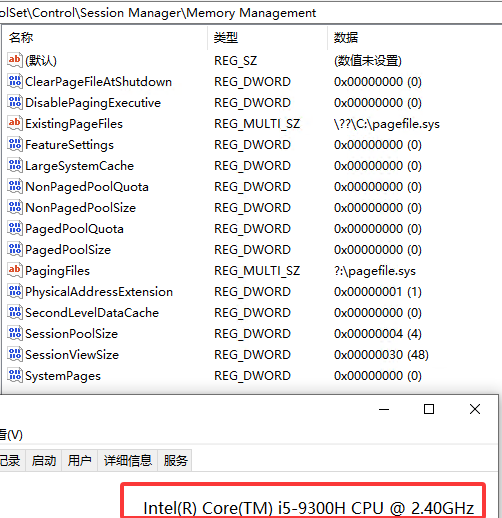

在注册表HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management

创建两个DWORD值：FeatureSettingsOverride FeatureSettingsOverrideMask，设置如下后重启

设置值为3，然后重启

**这两个值存在并且值正确的时候，关闭KVAS，**使用的就是KiSystemCall64，找到的是SSDT

删除这两个，开启KVAS的时候就为KiSystemCall64Shadow，需要处理的是Shadow SSDT

Full SSDT Hook

上一篇文章提到主要的问题是在64位系统上根据 ssdt 的算法，不能直接将新的函数的地址直接转为数组的下表（寻址范围太小）

找到临近的空位内存并申请

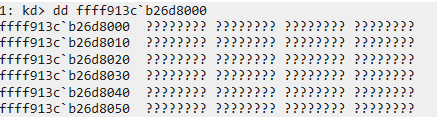

我手动调试找到了一块合适的位置进行测试，这一过程可以被自动化

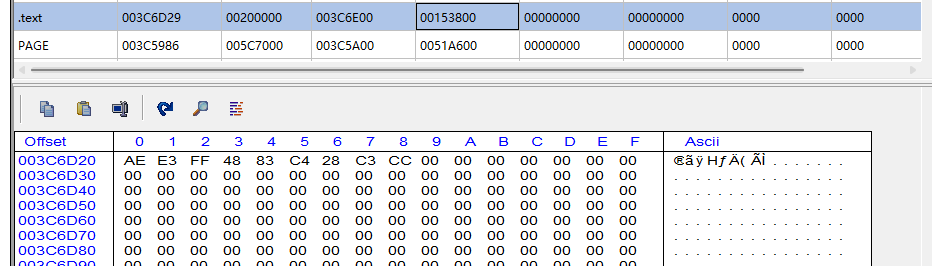

我选择了在ntoskrl.exe的.text最后一部分，根据RVA找到位置，而且调试后发现距离ssdt->table仅有0x04ff189

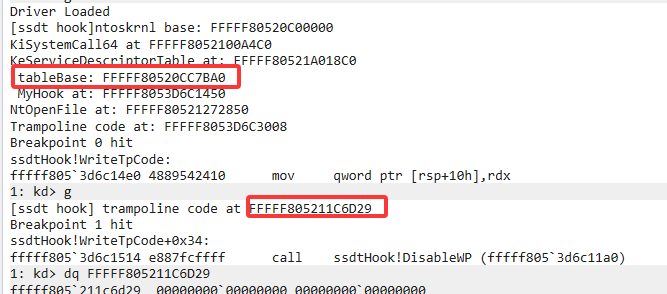

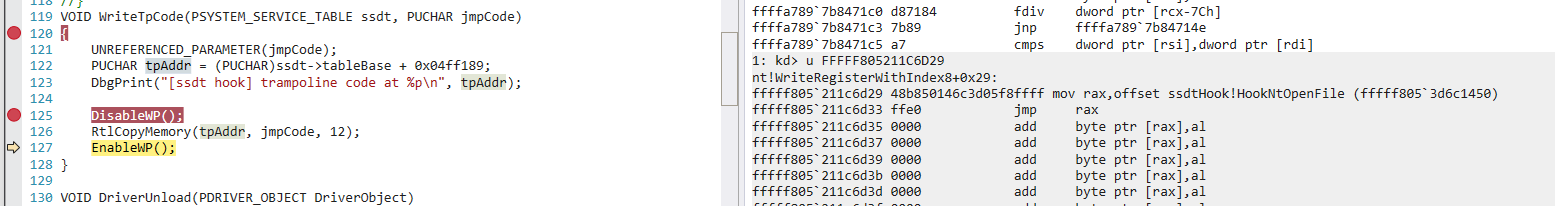

在新申请的临近位置内编写trampoline，跳转到新的函数

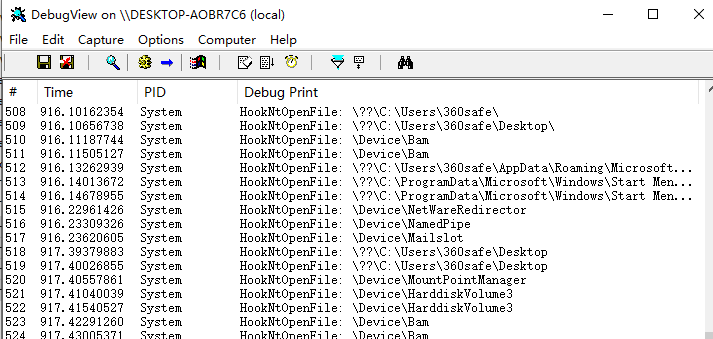

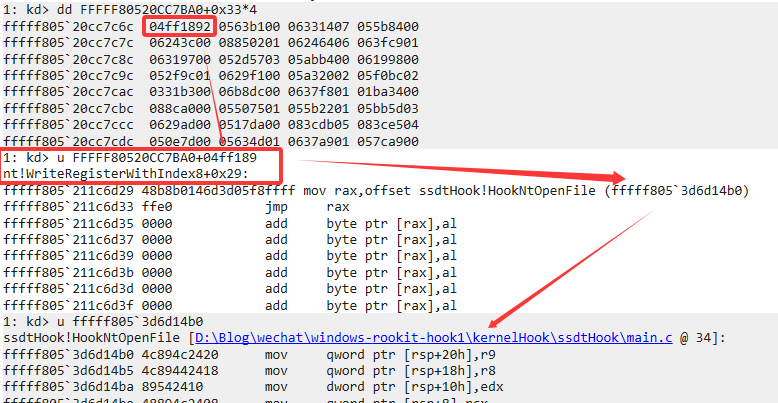

最后的效果：

实现代码在附录[《完整SSDT Hook》](##完整SSDT Hook)部分

枚举Shadow SSDT

由于前文关于KVAS保护中所提到的内容，这里要分两种情况进行探讨了

从KiSystemCall64到Shadow SSDT（我使用AMD CPU）
从KiSystemCall64Shadow到Shadow SSDT（我使用Intel CPU）

从KiSystemCall64开始

回顾前文

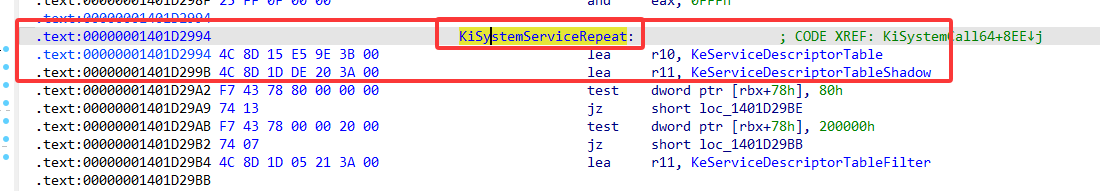

然后继续向下查到KiSystemServiceRepeat，主要是为了拿到KeServiceDescriptorTable或者KeServiceDescriptorTableShadow的值，在这里就是

35 05 9F 00和AE B6 8E 00

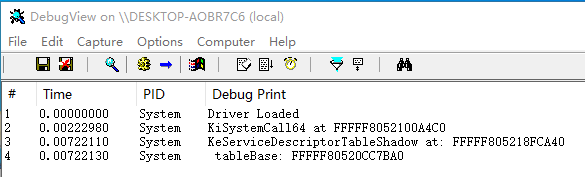

我们只需要改特征值找到KeServiceDescriptorTableShadow

for (size_t i = 0; i < 0x1000; i++)
{
    if (*(tempptr + i) == 0x4c && *(tempptr + i + 1) == 0x8d && *(tempptr + i + 2) == 0x1D) {
        offset = *((PLONG)(tempptr + i + 3));
        table = (PSYSTEM_SERVICE_TABLE)(tempptr + i + 7 + offset);
        break;
    }
}

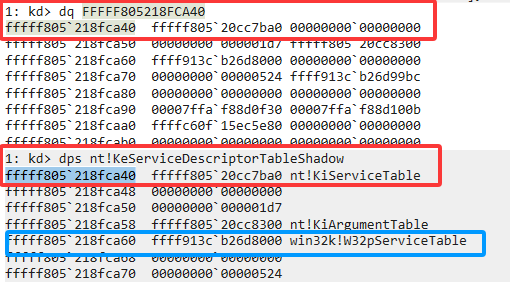

dps nt!KeServiceDescriptorTableShadow

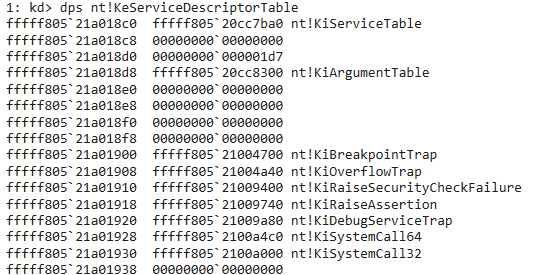

对比一下SSDT

多了更多的win32k的函数，并且这里是看不了win32k!W32pServiceTable的

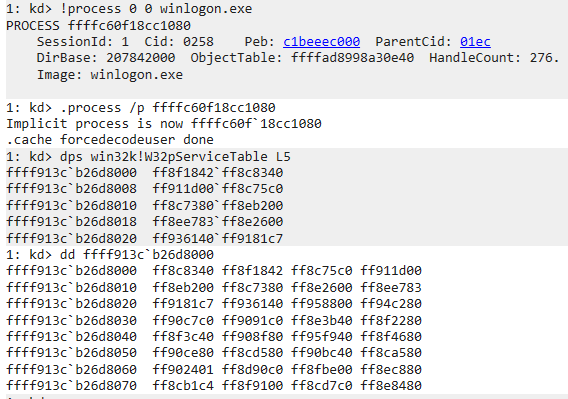

附加到使用了win32k的GUI用户态进程就可以看到了，这里attach winlogon.exe

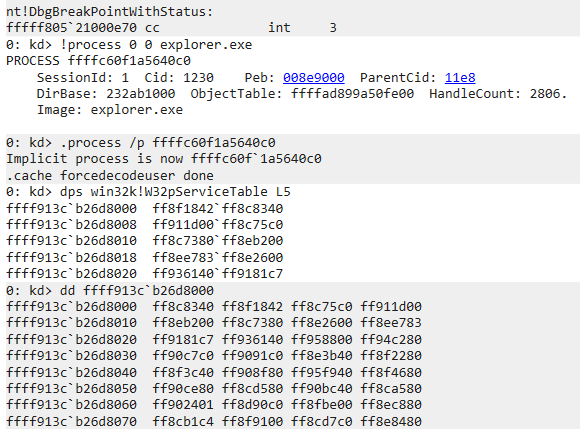

这个是文件管理器explore.exe看到的

到了这里大多数网上的教程就讲的不清楚了，所以我也是慢慢调试出来的

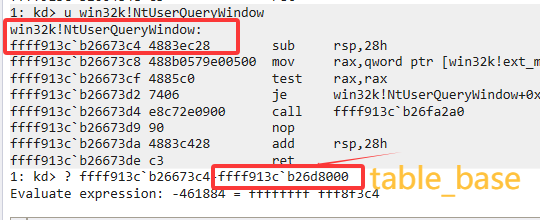

突破点是尝试看下win32k!NtUserQueryWindow

地址居然在win32k!W32pServiceTable之前（比win32k!W32pServiceTable小），而且注意到win32k!W32pServiceTable中的值均为ff开头，不免的让人想起这是做减法

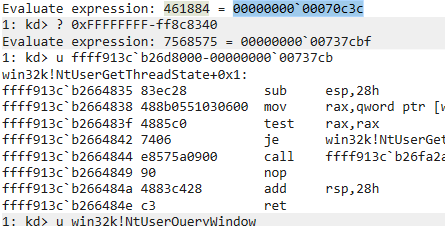

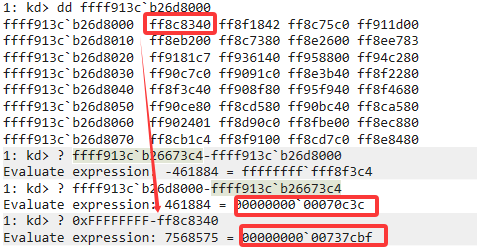

win32k!NtUserQueryWindow在table前0x70c3c，尝试使用table的第一个数做减法

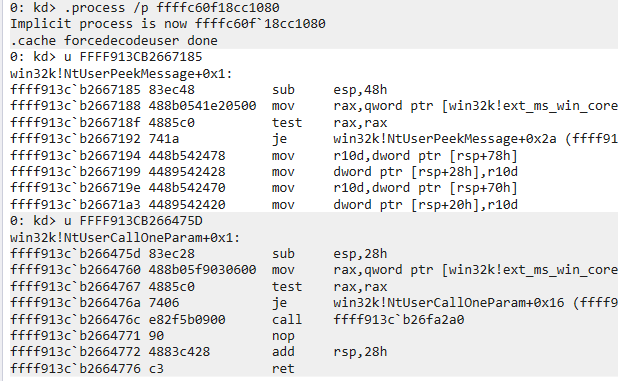

总结出公式

RealFuncAddr = table - (0xFFFFFFFF-(DWORD)W32pServiceTable[index])>>4

测试代码可见附录[《Shadow SSDT 枚举》](##Shadow SSDT 枚举)

DriverEntry中的HANDLE pid = (HANDLE)600;需要修改，这里我用的是winlogon.exe的pid
关于结构体SYSTEM_SERVICE_TABLE的定义可以精简
Hook：手法和SSDT的一致

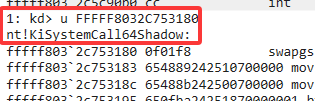

从KiSystemCall64Shadow开始

这个时候要完成两件事情了，KiSystemCall64Shadow找到SSDT和ShadowSSDT

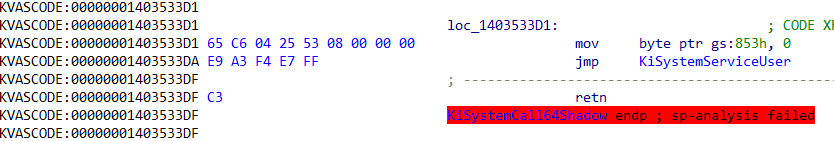

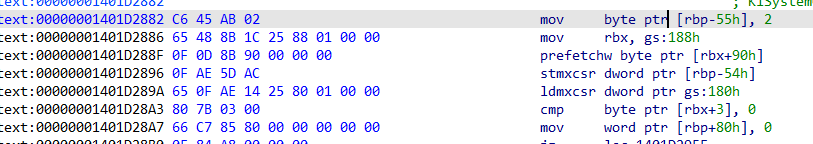

跟踪KiSystemCall64Shadow找到KiSystemServiceUser

KiSystemServiceUser向下就会找到老熟人

然后用老方法即可，无非就是多几段字节序列搜索

引用

https://learn.microsoft.com/zh-cn/windows/win32/services/service-control-manager

https://r0keb.github.io/posts/PatchGuard-Internals/

https://standa-note.blogspot.com/2015/10/some-tips-to-analyze-patchguard.html

https://blog.tetrane.com/downloads/Tetrane_PatchGuard_Analysis_RS4_v1.01.pdf

https://joe1sn.eu.org/2024/01/25/win-hevd-exp-stackoverflow-III/

附录

简单的ring3驱动加载器

#include <windows.h>
#include <iostream>
#include <string>

bool CreateDriver(const std::string& name, const std::string& path) {
    SC_HANDLE hSCM = OpenSCManager(NULL, NULL, SC_MANAGER_CREATE_SERVICE);
    if (!hSCM) {
        std::cerr << "OpenSCManager failed: " << GetLastError() << std::endl;
        return false;
    }
    std::string ntPath = "\\??\\" + path;
    SC_HANDLE hService = CreateServiceA(
        hSCM,
        name.c_str(),
        name.c_str(),
        SERVICE_START | DELETE | SERVICE_STOP,
        SERVICE_KERNEL_DRIVER,
        SERVICE_DEMAND_START,
        SERVICE_ERROR_NORMAL,
        ntPath.c_str(),
        NULL, NULL, NULL, NULL, NULL
    );

    if (!hService) {
        DWORD err = GetLastError();
        if (err == ERROR_SERVICE_EXISTS) {
            std::cout << "Service already exists." << std::endl;
        }
        else {
            std::cerr << "CreateService failed: " << err << std::endl;
            CloseServiceHandle(hSCM);
            return false;
        }
    }
    else {
        std::cout << "Service created successfully." << std::endl;
        CloseServiceHandle(hService);
    }

    CloseServiceHandle(hSCM);
    return true;
}

bool StartDriver(const std::string& name) {
    SC_HANDLE hSCM = OpenSCManager(NULL, NULL, SC_MANAGER_CONNECT);
    if (!hSCM) return false;

    SC_HANDLE hService = OpenServiceA(hSCM, name.c_str(), SERVICE_START);
    if (!hService) {
        std::cerr << "OpenService failed: " << GetLastError() << std::endl;
        CloseServiceHandle(hSCM);
        return false;
    }

    if (!StartService(hService, 0, NULL)) {
        DWORD err = GetLastError();
        if (err == ERROR_SERVICE_ALREADY_RUNNING) {
            std::cout << "Already running." << std::endl;
        }
        else {
            std::cerr << "StartService failed: " << err << std::endl;
        }
    }
    else {
        std::cout << "Driver started." << std::endl;
    }

    CloseServiceHandle(hService);
    CloseServiceHandle(hSCM);
    return true;
}

bool StopDriver(const std::string& name) {
    SC_HANDLE hSCM = OpenSCManager(NULL, NULL, SC_MANAGER_CONNECT);
    if (!hSCM) return false;

    SC_HANDLE hService = OpenServiceA(hSCM, name.c_str(), SERVICE_STOP);
    if (!hService) {
        std::cerr << "OpenService failed: " << GetLastError() << std::endl;
        CloseServiceHandle(hSCM);
        return false;
    }

    SERVICE_STATUS status;
    if (!ControlService(hService, SERVICE_CONTROL_STOP, &status)) {
        std::cerr << "Stop failed: " << GetLastError() << std::endl;
    }
    else {
        std::cout << "Driver stopped." << std::endl;
    }

    CloseServiceHandle(hService);
    CloseServiceHandle(hSCM);
    return true;
}

bool DeleteDriver(const std::string& name) {
    SC_HANDLE hSCM = OpenSCManager(NULL, NULL, SC_MANAGER_CONNECT);
    if (!hSCM) return false;

    SC_HANDLE hService = OpenServiceA(hSCM, name.c_str(), DELETE);
    if (!hService) {
        std::cerr << "OpenService failed: " << GetLastError() << std::endl;
        CloseServiceHandle(hSCM);
        return false;
    }

    if (!DeleteService(hService)) {
        std::cerr << "Delete failed: " << GetLastError() << std::endl;
    }
    else {
        std::cout << "Service deleted." << std::endl;
    }

    CloseServiceHandle(hService);
    CloseServiceHandle(hSCM);
    return true;
}

int main(int argc, char* argv[]) {
    if (argc < 3) {
        std::cout << "Usage:\n"
            << "  create <name> <path>\n"
            << "  start <name>\n"
            << "  stop <name>\n"
            << "  delete <name>\n";
        return 0;
    }

    std::string action = argv[1];
    std::string name = argv[2];

    if (action == "create") {
        if (argc < 4) {
            std::cerr << "Missing driver path.\n";
            return 1;
        }
        std::string path = argv[3];
        CreateDriver(name, path);
    }
    else if (action == "start") {
        StartDriver(name);
    }
    else if (action == "stop") {
        StopDriver(name);
    }
    else if (action == "delete") {
        DeleteDriver(name);
    }
    else {
        std::cerr << "Unknown action.\n";
    }

    return 0;
}

手动映射SYS

#include <ntifs.h>
#include <ntimage.h>

typedef NTSTATUS(*DriverEntry_t)(
    PDRIVER_OBJECT DriverObject,
    PUNICODE_STRING RegistryPath
    );

typedef struct _SYSTEM_MODULE_ENTRY {
    PVOID  Reserved[2];
    PVOID  ImageBase;
    ULONG  ImageSize;
    ULONG  Flags;
    USHORT Index;
    USHORT Unknown;
    USHORT LoadCount;
    USHORT ModuleNameOffset;
    CHAR   FullPathName[256];
} SYSTEM_MODULE_ENTRY, * PSYSTEM_MODULE_ENTRY;

typedef struct _SYSTEM_MODULE_INFORMATION {
    ULONG NumberOfModules;
    SYSTEM_MODULE_ENTRY Modules[1];
} SYSTEM_MODULE_INFORMATION, * PSYSTEM_MODULE_INFORMATION;

// ZwQuerySystemInformation 原型
typedef enum _SYSTEM_INFORMATION_CLASS {
    SystemBasicInformation = 0,
    SystemModuleInformation = 11
} SYSTEM_INFORMATION_CLASS;

NTSYSAPI
NTSTATUS
NTAPI
ZwQuerySystemInformation(
    SYSTEM_INFORMATION_CLASS SystemInformationClass,
    PVOID                    SystemInformation,
    ULONG                    SystemInformationLength,
    PULONG                   ReturnLength
);

//typedef struct _SYSTEM_MODULE_ENTRY {
//    PVOID  Reserved[2];
//    PVOID  ImageBase;
//    ULONG  ImageSize;
//    ULONG  Flags;
//    USHORT Index;
//    USHORT Unknown;
//    USHORT LoadCount;
//    USHORT ModuleNameOffset;
//    CHAR   FullPathName[256];
//} SYSTEM_MODULE_ENTRY, * PSYSTEM_MODULE_ENTRY;

//typedef struct _SYSTEM_MODULE_INFORMATION {
//    ULONG NumberOfModules;
//    SYSTEM_MODULE_ENTRY Modules[1];
//} SYSTEM_MODULE_INFORMATION, * PSYSTEM_MODULE_INFORMATION;

PVOID GetKernelBase(PCSTR ModuleName)
{
    NTSTATUS status;
    ULONG size = 0;
    PVOID buffer = NULL;
    PVOID base = NULL;

    status = ZwQuerySystemInformation(
        SystemModuleInformation,        NULL,        0,        &size
    );

    if (status != STATUS_INFO_LENGTH_MISMATCH)
        return NULL;

    buffer = ExAllocatePool2(
        POOL_FLAG_NON_PAGED,        size,        'bKmM'
    );

    if (!buffer)
        return NULL;

    status = ZwQuerySystemInformation(
        SystemModuleInformation,        buffer,        size,        &size
    );

    if (!NT_SUCCESS(status))
    {
        ExFreePool(buffer);
        return NULL;
    }

    PSYSTEM_MODULE_INFORMATION modules =
        (PSYSTEM_MODULE_INFORMATION)buffer;

    for (ULONG i = 0; i < modules->NumberOfModules; i++)
    {
        PSYSTEM_MODULE_ENTRY mod = &modules->Modules[i];

        PCSTR fullPath = mod->FullPathName;
        PCSTR fileName = fullPath + mod->ModuleNameOffset;

        if (_stricmp(fileName, ModuleName) == 0)
        {
            base = mod->ImageBase;
            break;
        }
    }

    ExFreePool(buffer);
    return base;
}

PVOID GetKernelModuleBaseByName(PCSTR moduleName)
{
    NTSTATUS status;
    ULONG size = 0;
    PVOID buffer = NULL;
    PVOID base = NULL;

    // 先获取长度
    status = ZwQuerySystemInformation(SystemModuleInformation, NULL, 0, &size);
    if (status != STATUS_INFO_LENGTH_MISMATCH)
        return NULL;

    // 分配非分页池
    buffer = ExAllocatePool2(POOL_FLAG_NON_PAGED, size, 'tag1');
    if (!buffer)
        return NULL;

    status = ZwQuerySystemInformation(SystemModuleInformation, buffer, size, &size);
    if (!NT_SUCCESS(status)) {
        ExFreePool(buffer);
        return NULL;
    }

    PSYSTEM_MODULE_INFORMATION sysModules = (PSYSTEM_MODULE_INFORMATION)buffer;
    for (ULONG i = 0; i < sysModules->NumberOfModules; i++)
    {
        PSYSTEM_MODULE_ENTRY entry = &sysModules->Modules[i];
        PCSTR name = entry->FullPathName + entry->ModuleNameOffset; // 获取文件名
        if (_stricmp(name, moduleName) == 0)
        {
            base = entry->ImageBase;
            break;
        }
    }

    ExFreePool(buffer);
    return base;
}

PVOID GetKernelExport(PVOID moduleBase, PCSTR functionName)
{
    if (!moduleBase || !functionName)
        return NULL;

    PIMAGE_DOS_HEADER dosHeader = (PIMAGE_DOS_HEADER)moduleBase;
    if (dosHeader->e_magic != IMAGE_DOS_SIGNATURE)
        return NULL;

    PIMAGE_NT_HEADERS64 ntHeaders = (PIMAGE_NT_HEADERS64)((PUCHAR)moduleBase + dosHeader->e_lfanew);
    if (ntHeaders->Signature != IMAGE_NT_SIGNATURE)
        return NULL;

    IMAGE_DATA_DIRECTORY exportDirData = ntHeaders->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT];
    if (!exportDirData.Size)
        return NULL;

    PIMAGE_EXPORT_DIRECTORY exportDir = (PIMAGE_EXPORT_DIRECTORY)((PUCHAR)moduleBase + exportDirData.VirtualAddress);

    ULONG* nameRvas = (ULONG*)((PUCHAR)moduleBase + exportDir->AddressOfNames);
    USHORT* ordinals = (USHORT*)((PUCHAR)moduleBase + exportDir->AddressOfNameOrdinals);
    ULONG* functions = (ULONG*)((PUCHAR)moduleBase + exportDir->AddressOfFunctions);

    for (ULONG i = 0; i < exportDir->NumberOfNames; i++)
    {
        PCSTR name = (PCSTR)((PUCHAR)moduleBase + nameRvas[i]);
        if (_stricmp(name, functionName) == 0)
        {
            USHORT ordinal = ordinals[i];
            ULONG funcRva = functions[ordinal];
            return (PVOID)((PUCHAR)moduleBase + funcRva);
        }
    }

    return NULL; // 未找到
}



BOOLEAN FixRelocation(PVOID newBase, PIMAGE_NT_HEADERS64 nt)
{
    ULONGLONG delta = (ULONGLONG)newBase - nt->OptionalHeader.ImageBase;
    if (delta == 0) return TRUE;

    IMAGE_DATA_DIRECTORY relocDir =
        nt->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_BASERELOC];

    if (!relocDir.Size) return TRUE;

    PIMAGE_BASE_RELOCATION reloc =
        (PIMAGE_BASE_RELOCATION)((PUCHAR)newBase + relocDir.VirtualAddress);

    PUCHAR end = (PUCHAR)reloc + relocDir.Size;

    while ((PUCHAR)reloc < end && reloc->SizeOfBlock)
    {
        if (reloc->SizeOfBlock < sizeof(IMAGE_BASE_RELOCATION))
            break;

        UINT32 count =
            (reloc->SizeOfBlock - sizeof(IMAGE_BASE_RELOCATION)) / sizeof(USHORT);

        PUSHORT list =
            (PUSHORT)((PUCHAR)reloc + sizeof(IMAGE_BASE_RELOCATION));

        for (UINT32 i = 0; i < count; i++)
        {
            USHORT type = list[i] >> 12;
            USHORT offset = list[i] & 0xFFF;

            if (type == IMAGE_REL_BASED_ABSOLUTE)
                continue;

            if (type == IMAGE_REL_BASED_DIR64)
            {
                PULONGLONG addr =
                    (PULONGLONG)((PUCHAR)newBase + reloc->VirtualAddress + offset);

                *addr += delta;
            }
        }

        reloc = (PIMAGE_BASE_RELOCATION)((PUCHAR)reloc + reloc->SizeOfBlock);
    }

    return TRUE;
}

BOOLEAN FixImportTable(PVOID imageBase, PIMAGE_NT_HEADERS64 nt)
{
    IMAGE_DATA_DIRECTORY importDir =
        nt->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_IMPORT];

    if (!importDir.Size)
        return TRUE;

    PIMAGE_IMPORT_DESCRIPTOR import =
        (PIMAGE_IMPORT_DESCRIPTOR)((PUCHAR)imageBase + importDir.VirtualAddress);
    size_t i = 0;
    while (i < 2)
    {
        ++i;

        PCSTR moduleName = (PCSTR)((PUCHAR)imageBase + import->Name);

        PVOID moduleBase = GetKernelBase(moduleName);
        //PVOID moduleBase = GetKernelModuleBaseByName(moduleName);

        if (!moduleBase)
            return FALSE;

        PIMAGE_THUNK_DATA64 thunk =
            (PIMAGE_THUNK_DATA64)((PUCHAR)imageBase + import->FirstThunk);

        PIMAGE_THUNK_DATA64 origThunk =
            (PIMAGE_THUNK_DATA64)((PUCHAR)imageBase + import->OriginalFirstThunk);

        //PIMAGE_THUNK_DATA64 origThunk;

        if (import->OriginalFirstThunk)
        {
            origThunk =
                (PIMAGE_THUNK_DATA64)((PUCHAR)imageBase + import->OriginalFirstThunk);
        }
        else
        {
            origThunk =
                (PIMAGE_THUNK_DATA64)((PUCHAR)imageBase + import->FirstThunk);
        }

        while (origThunk->u1.AddressOfData)
        {
            PIMAGE_IMPORT_BY_NAME importName =
                (PIMAGE_IMPORT_BY_NAME)((PUCHAR)imageBase + origThunk->u1.AddressOfData);

            PVOID fn = GetKernelExport(moduleBase, importName->Name);

            if (!fn)
                return FALSE;

            thunk->u1.Function = (ULONGLONG)fn;

            origThunk++;
            thunk++;
        }
import++;
    }
    return TRUE;
}


NTSTATUS ExecuteMappedDriver(PDRIVER_OBJECT DriverObject, PVOID imageBase)
{
    PIMAGE_DOS_HEADER dos = (PIMAGE_DOS_HEADER)imageBase;
    PIMAGE_NT_HEADERS nt = (PIMAGE_NT_HEADERS)((PUCHAR)imageBase + dos->e_lfanew);

    ULONG entryRVA = nt->OptionalHeader.AddressOfEntryPoint;

    //DriverEntry_t entry = (DriverEntry_t)((PUCHAR)imageBase + 0x3208);
    DriverEntry_t entry = (DriverEntry_t)((PUCHAR)imageBase + 0x2C);

    UNICODE_STRING fakeReg;
    RtlInitUnicodeString(&fakeReg, L"\\Registry\\Machine\\System\\Fake");

    return entry(DriverObject, &fakeReg); // DriverObject = NULL
}

NTSTATUS MapImage(PDRIVER_OBJECT DriverObject, PVOID buffer)
{
    PIMAGE_DOS_HEADER dos = (PIMAGE_DOS_HEADER)buffer;
    PIMAGE_NT_HEADERS nt = (PIMAGE_NT_HEADERS)((PUCHAR)buffer + dos->e_lfanew);

    SIZE_T imageSize = nt->OptionalHeader.SizeOfImage;

    PVOID imageBase = ExAllocatePool(NonPagedPool, imageSize);
    if (!imageBase)
        return STATUS_INSUFFICIENT_RESOURCES;

    RtlZeroMemory(imageBase, imageSize);

    // 拷贝 headers
    RtlCopyMemory(imageBase, buffer, nt->OptionalHeader.SizeOfHeaders);

    // 拷贝 section
    PIMAGE_SECTION_HEADER section = IMAGE_FIRST_SECTION(nt);
    for (int i = 0; i < nt->FileHeader.NumberOfSections; i++)
    {
        PVOID dest = (PUCHAR)imageBase + section[i].VirtualAddress;
        PVOID src = (PUCHAR)buffer + section[i].PointerToRawData;

        RtlCopyMemory(dest, src, section[i].SizeOfRawData);
    }
    // - 重定位修复
    FixRelocation(imageBase, nt);

    // - IAT 导入解析
    FixImportTable(imageBase, nt);

    return ExecuteMappedDriver(DriverObject, imageBase);
}

NTSTATUS ReadFileToBuffer(
    PCWSTR filePath,
    PVOID* outBuffer,
    PULONG outSize
)
{
    NTSTATUS status;
    HANDLE fileHandle;
    OBJECT_ATTRIBUTES objAttr;
    IO_STATUS_BLOCK ioStatus;
    UNICODE_STRING uFilePath;

    *outBuffer = NULL;
    *outSize = 0;

    RtlInitUnicodeString(&uFilePath, filePath);

    InitializeObjectAttributes(
        &objAttr,
        &uFilePath,
        OBJ_CASE_INSENSITIVE | OBJ_KERNEL_HANDLE,
        NULL,
        NULL
    );

    // 打开文件
    status = ZwCreateFile(
        &fileHandle,        GENERIC_READ,        &objAttr,        &ioStatus,        NULL,        FILE_ATTRIBUTE_NORMAL,        FILE_SHARE_READ,        FILE_OPEN,        FILE_NON_DIRECTORY_FILE | FILE_SYNCHRONOUS_IO_NONALERT,        NULL,        0
    );

    if (!NT_SUCCESS(status)) {
        DbgPrint("ZwCreateFile failed: 0x%X\n", status);
        return status;
    }

    // 获取文件大小
    FILE_STANDARD_INFORMATION fileInfo;
    status = ZwQueryInformationFile(
        fileHandle,
        &ioStatus,
        &fileInfo,
        sizeof(fileInfo),
        FileStandardInformation
    );

    if (!NT_SUCCESS(status)) {
        ZwClose(fileHandle);
        return status;
    }

    ULONG fileSize = (ULONG)fileInfo.EndOfFile.QuadPart;

    // 分配内存
    PVOID buffer = ExAllocatePool(NonPagedPool, fileSize);
    if (!buffer) {
        ZwClose(fileHandle);
        return STATUS_INSUFFICIENT_RESOURCES;
    }

    // 读取文件
    status = ZwReadFile(
        fileHandle,        NULL,        NULL,        NULL,        &ioStatus,        buffer,        fileSize,        NULL,   NULL
    );

    if (!NT_SUCCESS(status)) {
        ExFreePool(buffer);
        ZwClose(fileHandle);
        return status;
    }

    ZwClose(fileHandle);

    *outBuffer = buffer;
    *outSize = fileSize;

    DbgPrint("Read file success, size: %lu\n", fileSize);

    return STATUS_SUCCESS;
}

VOID
DriverUnload(PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);
    DbgPrint("Driver Stopping -> %wZ\n", &DriverObject->DriverName);
}

NTSTATUS
DriverEntry(PDRIVER_OBJECT  DriverObject, PUNICODE_STRING RegistryPath)
{
    UNREFERENCED_PARAMETER(RegistryPath);
    DbgPrint("Driver Running -> %wZ\n", &DriverObject->DriverName);
    DriverObject->DriverUnload = DriverUnload;
    PVOID buffer;
    ULONG size;

    NTSTATUS status = ReadFileToBuffer(
        L"\\??\\C:\\Users\\WDKRemoteUser\\Desktop\\test\\helloworld.sys",
        //C:\Users\WDKRemoteUser\Desktop\test
        &buffer,
        &size
    );

    if (!NT_SUCCESS(status)) {
        DbgPrint("Can't read file\n");
        return status;
    }

    MapImage(DriverObject, buffer);
    status = STATUS_SUCCESS;
    return status;
}

完整SSDT Hook

#include "helper.h"
#include <ntifs.h>

typedef NTSTATUS(*NTOPENFILE)(
    PHANDLE FileHandle,
    ACCESS_MASK DesiredAccess,
    POBJECT_ATTRIBUTES ObjectAttributes,
    PIO_STATUS_BLOCK IoStatusBlock,
    ULONG ShareAccess,
    ULONG OpenOptions
    );

typedef struct _SYSTEM_SERVICE_TABLE
{
    PVOID tableBase;
    PVOID serviceCountBase;
    ULONG64 numberOfServices;
    PVOID unkown;
}SYSTEM_SERVICE_TABLE, * PSYSTEM_SERVICE_TABLE;

NTOPENFILE OriginalNtOpenFile = NULL;
ULONG NtOpenFileIndex = 51;
PSYSTEM_SERVICE_TABLE g_Table = NULL;
ULONG64 g_Trampoline = 0x0;

NTSTATUS HookNtOpenFile(
    PHANDLE FileHandle,
    ACCESS_MASK DesiredAccess,
    POBJECT_ATTRIBUTES ObjectAttributes,
    PIO_STATUS_BLOCK IoStatusBlock,
    ULONG ShareAccess,
    ULONG OpenOptions
)
{
    if (ObjectAttributes && ObjectAttributes->ObjectName)
    {
        DbgPrint("HookNtOpenFile: %wZ\n", ObjectAttributes->ObjectName);
    }

    return OriginalNtOpenFile(
        FileHandle,
        DesiredAccess,
        ObjectAttributes,
        IoStatusBlock,
        ShareAccess,
        OpenOptions
    );
}

LONG64 GetFuncAddr(size_t index, PSYSTEM_SERVICE_TABLE ssdt) {
    if (index > ssdt->numberOfServices)
        return 0;
    LONG offset = ((PLONG)(ssdt->tableBase))[index] >> 4;
    return (DWORDLONG)(ssdt->tableBase) + offset;
}

VOID DisableWP()
{
    ULONG64 cr0 = __readcr0();
    cr0 &= 0xfffffffffffeffff;
    __writecr0(cr0);
    _disable();
}

VOID EnableWP()
{
    ULONG64 cr0 = __readcr0();
    cr0 |= 0x10000;
    __writecr0(cr0);
    _enable();
}

VOID HookSSDT(PSYSTEM_SERVICE_TABLE ssdt)
{
    PULONG table = ssdt->tableBase;
    ULONG entry = table[NtOpenFileIndex];
    ULONG64 base = (ULONG64)table;
    ULONG64 original = base + (entry >> 4);
    OriginalNtOpenFile = (NTOPENFILE)original;
    ULONG param = entry & 0xF;
    if (g_Trampoline == 0) {
        return;
    }
    ULONG64 hookAddr = (ULONG64)g_Trampoline; //TODO: 修改为trampoline
    ULONG newEntry = (ULONG)(((hookAddr - base) << 4) | param);
    DisableWP();
    table[NtOpenFileIndex] = newEntry;
    EnableWP();
}
VOID UnhookSSDT(PSYSTEM_SERVICE_TABLE ssdt)
{

    PULONG table = ssdt->tableBase;
    ULONG entry = table[NtOpenFileIndex];
    ULONG param = entry & 0xF;
    ULONG64 base = (ULONG64)table;
    ULONG64 original = (ULONG64)OriginalNtOpenFile;
    ULONG newEntry = (ULONG)(((original - base) << 4) | param);
    DisableWP();
    table[NtOpenFileIndex] = newEntry;
    EnableWP();
}

PUCHAR BuildTrampoline(ULONG64 funcAddr)
{
    static UCHAR trampo[12] = {
        0x48, 0xB8,             // mov rax, imm64
        0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,        // addr placeholder
        0xFF, 0xE0              // jmp rax
    };

    *(PULONG64)&trampo[2] = funcAddr;

    return trampo;
}

VOID WriteTpCode(PSYSTEM_SERVICE_TABLE ssdt, PUCHAR jmpCode)
{
    UNREFERENCED_PARAMETER(jmpCode);
    PUCHAR tpAddr = (PUCHAR)ssdt->tableBase + 0x04ff189;
    DbgPrint("[ssdt hook] trampoline code at %p\n", tpAddr);

    DisableWP();
    RtlCopyMemory(tpAddr, jmpCode, 12);
    EnableWP();
    g_Trampoline = (ULONG64)tpAddr;
}

VOID DriverUnload(PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);
    UnhookSSDT(g_Table);
    DbgPrint("Driver Unloaded\n");
}

NTSTATUS DriverEntry(PDRIVER_OBJECT DriverObject, PUNICODE_STRING RegistryPath)
{
    UNREFERENCED_PARAMETER(RegistryPath);

    DbgPrint("Driver Loaded\n");
    DriverObject->DriverUnload = DriverUnload;
    PVOID kernelbase = GetKernelBase("ntoskrnl.exe");
    DbgPrint("[ssdt hook]ntoskrnl base: %p\n", kernelbase);


    DWORD64 dmsr = __readmsr(0xC0000082);
    DbgPrint("KiSystemCall64 at %p\n", dmsr);
    PUCHAR tempptr = (PUCHAR)(dmsr);
    LONG offset = 0;
    PSYSTEM_SERVICE_TABLE table = NULL;
    for (size_t i = 0; i < 0x1000; i++)
    {
        if (*(tempptr + i) == 0x4c && *(tempptr + i + 1) == 0x8d && *(tempptr + i + 2) == 0x15) {
            offset = *((PLONG)(tempptr + i + 3));
            table = (PSYSTEM_SERVICE_TABLE)(tempptr + i + 7 + offset);
            break;
        }
    }
    if (offset == 0) {
        DbgPrint("Not found KeServiceDescriptorTable\n");
        return STATUS_NOT_FOUND;
    }
    g_Table = table;
    DbgPrint("KeServiceDescriptorTable at: %p\n tableBase: %p\n MyHook at: %p\n", table, table->tableBase, HookNtOpenFile);
    DbgPrint("NtOpenFile at: %p\n", GetFuncAddr(NtOpenFileIndex, table));
    PUCHAR tpCode = BuildTrampoline((ULONG64)HookNtOpenFile);
    DbgPrint("Trampoline code at: %p\n", tpCode);
    WriteTpCode(table, tpCode);

    HookSSDT(table);
    DbgPrint("[hooked] NtOpenFile at: %p\n", GetFuncAddr(NtOpenFileIndex, table));


    return STATUS_SUCCESS;
}

Shadow SSDT 枚举

#include <ntifs.h>
#include <ntddk.h>

extern PEPROCESS NTAPI PsGetNextProcess(_In_opt_ PEPROCESS Process);
extern UCHAR* NTAPI PsGetProcessImageFileName(_In_ PEPROCESS Process);

typedef NTSTATUS(*NTOPENFILE)(
    PHANDLE FileHandle,
    ACCESS_MASK DesiredAccess,
    POBJECT_ATTRIBUTES ObjectAttributes,
    PIO_STATUS_BLOCK IoStatusBlock,
    ULONG ShareAccess,
    ULONG OpenOptions
    );

typedef struct _SYSTEM_SERVICE_TABLE
{
    PVOID tableBase;
    PVOID serviceCountBase;
    ULONG64 numberOfServices;
    PVOID unkown1;
    PVOID shadowTableBase;
    PVOID shaodwserviceCountBase;
    ULONG64 numberOfShadowServices;
    PVOID unkown2;
}SYSTEM_SERVICE_TABLE, * PSYSTEM_SERVICE_TABLE;
PSYSTEM_SERVICE_TABLE g_Table = 0x0;


LONG64 GetFuncAddr(size_t index, PSYSTEM_SERVICE_TABLE ssdt) {
    if (index > ssdt->numberOfShadowServices)
        return 0;
    LONG offset = (0xFFFFFFFF - ((PLONG)(ssdt->shadowTableBase))[index]) >> 4;
    return (DWORDLONG)(ssdt->shadowTableBase) - offset;
}

VOID DriverUnload(PDRIVER_OBJECT DriverObject)
{
    UNREFERENCED_PARAMETER(DriverObject);
    DbgPrint("Driver Unloaded\n");
}

NTSTATUS DriverEntry(PDRIVER_OBJECT DriverObject, PUNICODE_STRING RegistryPath)
{
    UNREFERENCED_PARAMETER(RegistryPath);

    DbgPrint("Driver Loaded\n");
    DriverObject->DriverUnload = DriverUnload;


    DWORD64 dmsr = __readmsr(0xC0000082);
    DbgPrint("KiSystemCall64 at %p\n", dmsr);
    PUCHAR tempptr = (PUCHAR)(dmsr);
    LONG offset = 0;
    PSYSTEM_SERVICE_TABLE table = NULL;
    for (size_t i = 0; i < 0x1000; i++)
    {
        if (*(tempptr + i) == 0x4c && *(tempptr + i + 1) == 0x8d && *(tempptr + i + 2) == 0x1D) {
            offset = *((PLONG)(tempptr + i + 3));
            table = (PSYSTEM_SERVICE_TABLE)(tempptr + i + 7 + offset);
            break;
        }
    }
    if (offset == 0) {
        DbgPrint("Not found KeServiceDescriptorTableShadow\n");
        return STATUS_NOT_FOUND;
    }
    g_Table = table;
    DbgPrint("KeServiceDescriptorTableShadow at: %p\n tableBase: %p\n", table, table->shadowTableBase);


    HANDLE pid = (HANDLE)600;
    PEPROCESS Process = NULL;

    if (NT_SUCCESS(PsLookupProcessByProcessId(pid, &Process)))
    {
        KAPC_STATE state;

        KeStackAttachProcess(Process, &state);

        for (size_t i = 0; i < table->numberOfShadowServices; i++)
        {
            DbgPrint("No.%d func at: %p\n", i, GetFuncAddr(i, table));
        }

        KeUnstackDetachProcess(&state);

        ObDereferenceObject(Process);
    }
    return STATUS_SUCCESS;
}
